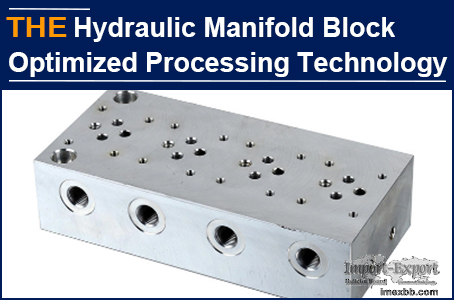

AAK Hydraulic Manifold Block Optimized Processing Technology

The original manufacturer of the hydraulic manifold block made samples for 3
times, pushed the delivery for 3 times, but the samples were still not
approved. There was always 0.5~1.0mm burrs in the deep hole of the hydraulic
manifold block. After AAK took over, in terms of process, it abandoned the
conventional route, optimized 3 points, and got the samples approved at one
time.

Tom from Holland, their customer wanted to develop a hydraulic manifold block.
The maximum side length of the hydraulic manifold block is 800mm, including
multiple 4 × M8 threaded holes and Φ 14、 Φ 17 deep holes, and the accuracy
is more than 10% higher than the conventional one. Tom knew the difficulty of
this hydraulic manifold block and the importance of this customer, so he
selected 2 most recognized hydraulic manifold blocks manufacturers to make
samples at the same time. It took 8 weeks to sample 3 times, and there were
still 0.5~1.0mm burrs in the deep holes of the hydraulic manifold blocks. The
customer was not satisfied. If the next sample of the hydraulic manifold block
still can not be approved, the order had to be cancelled. Within 2 days, Tom
contacted more than 30 hydraulic manifold block manufacturers, and those old
suppliers suggested him giving up, which made Tom very anxious.

Tom found AAK website on B2B and noticed AAK has tricks on the processing and
deburring of hydraulic manifold blocks. With the attitude of trying, he
contacted us. When receiving the drawing of hydraulic manifold block sent by
Tom, AAK technical team was also a little surprised. The hydraulic manifold
block is large size but with long and thin holes, and most of the holes are Φ
14、 Φ 17. The depth is more than 400mm, most of which are deep holes with a
length diameter ratio greater than 28. This is a challenge for machining,
especially for deep hole machining. The tool is long, chip removal is
difficult, chip extrusion is easy, and the drill bit is easy to break, with
many potential burrs. 2 days later, AAK technical team had a commencement plan.
I replied to Tom by email that AAK was willing to develop this hydraulic
manifold block and is 90% confident to be successful.

After 30 days, we sent 5 hydraulic manifold blocks. 2 weeks later, Tom emailed
us that the customer had approved AAK hydraulic manifold blocks, which not only
met the accuracy standard, but also completely removed the burrs. For the deep
hole processing of this hydraulic manifold block, the other hydraulic manifold
block manufacturers can not meet the precision and remove burrs completely,
maybe they still use traditional technology. AAK has always adhered to process
innovation and technology optimization. Aiming at the characteristics of this
hydraulic manifold block, AAK has made adjustment and optimization from 3
aspects:

1. Most hydraulic manifold block manufacturers use machine tools and gun drills
to process deep holes. The deviation of this hydraulic manifold block hole
reaches 1/800. AAK selects a machining center and adopts the two end butt joint
processing technology. First, use an alloy milling cutter to process a certain
depth of the guide hole, and then use a short to long fried dough twist drill
to process the deep hole, and strictly control the deviation error range of the
hole.

2. Adjust the traditional cutting speed, feed rate, cutting rate and other
parameters. AAK adopts the cutting speed of 160m/min, feed rate of 0.25mm/r,
and cutting rate of 0.5~2.0mm, which improves the cutting direction of burrs,
avoids 0.5~1.0mm additional burrs occurred during processing.

3. Before assembly, use kerosene circulation and ultrasonic cleaner to wash the
hydraulic manifold block for more than 1h, remove dirt, chips, fine burrs etc.
on the hole wall, and then inspect with the endoscope.

AAK hydraulic manifold block, processing does not produce extra burrs, welcome
to try!
