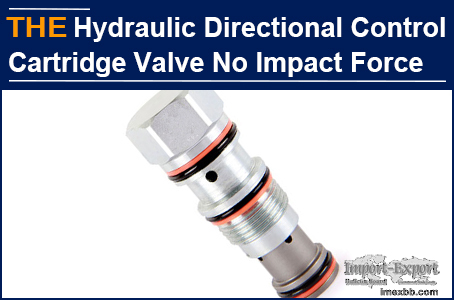

AAK Hydraulic Directional Control Cartridge Valve No impact Force

Bemus is from a hydraulic equipment manufacturing company in Greece. As an old
purchaser, he has been working smoothly, but had trouble with a hydraulic
directional control cartridge valve. In the second half of last year, they
wanted to test a hydraulic power unit for drilling equipment. The shaking was
serious during the equipment commissioning, which was caused by the sudden
impact of the hydraulic directional control cartridge valve under the high-
pressure closed circuit. The original hydraulic directional control cartridge
valve manufacturer explained that the hydraulic system pressure was too high.
Their engineers asked Bemus to re-purchase the hydraulic directional control
cartridge valves. After a week, there was no result. Bemus was worried.

Bemus found AAK in B2B and left a message on our website: How to make the
hydraulic directional control cartridge valve without impact under the high-
pressure closed circuit? After several rounds of communication, we learned the
above problem that he encountered in purchasing of the hydraulic directional
control cartridge valves. According to the video of equipment abnormality and
the production drawing of hydraulic directional control cartridge valve sent by
him, AAK engineer was 90% confident to eliminate the abnormality caused by the
impact force. Bemus requested AAK to make samples. After 50 days, AAK sent 12
samples of hydraulic directional control cartridge valves.

6 weeks later, Bemus said that the trial run of their equipment was successful
and the prototype had been delivered to the customer. AAK hydraulic directional
control cartridge valve, based on the unloading valve spool, made 3 small
changes to achieve pressure release. The optimized hydraulic directional
control cartridge valve reduces the oil pressure in the high-pressure closed
circuit and avoids sudden impact. Its stability can better control the
equipment operation.

1. The unloading valve spool is arranged in the valve spool, and the control
piston is connected with the push rod. The control piston can open the valve
spool, and the inlet and outlet are connected, thus realizing reverse flow.

2. The unloading valve spool is connected with the spring seat, one end of the
spring is fixedly connected with the top of the valve body, and the other point
is connected with the spring seat. When there is no pressure oil in the control
oil port, the pressure oil can only flow from the passage port to the outlet,
and cannot reverse flow.

3. The bottom of the unloading valve spool is processed into a "convex" shape,
which plays the purpose of unloading before the valve spool. When the pressure
at the outlet is high, the control piston pushes the unloading valve spool
first. When the pressure at the outlet decreases, the unloading valve spool
connects the inlet and outlet.

AAK hydraulic directional control cartridge valve, no impact force, and stable,
you can also try it!
