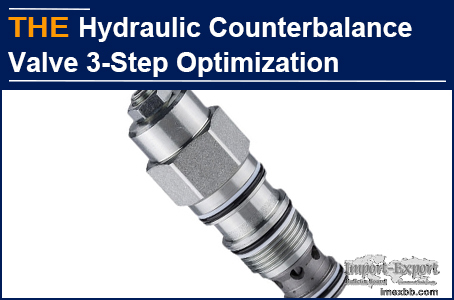

AAK Hydraulic Counterbalance Valve 3-Step Optimization

Pozo is from Argentina, and left a message on AAK hydraulic cartridge valve
website the day before yesterday: I saw a customer case that AAK hydraulic
counterbalance valve has 1 additional function compared to its peers. We also
have similar difficulties. Can AAK customize the hydraulic counterbalance valve
according to our parameter requirements to meet our equipment requirements?
After communication, it was learned that Pozo's lift experienced shaking and
impact when the load was lowered, resulting in unstable system. Pozo contacted
several hydraulic cartridge valve manufacturers in China but made no
substantial progress.

According to the dissected diagram of the hydraulic counterbalance valve sample
he emailed, as well as the schematic diagram of the lift hydraulic system, it
is very similar to the one customized by AAK for a Peruvian customer a while
ago. The overflow area of the hydraulic counterbalance valve port undergoes a
sudden change, which cannot timely buffer the pressure peak generated by load
impact. I showed him a diagram of how AAK solves the overflow area of the
hydraulic counterbalance valve port. Based on this, then to optimize the
internal structure and external dimensions of the hydraulic counterbalance
valve, it will match his hydraulic system.

Pozo requested AAK to make samples of hydraulic counterbalance valve, and today
we received his bank slip for the development fee. The optimization plan that
we proposed to Pozo is as follows:

1. The hydraulic counterbalance valve sleeve is equipped with a transverse
through hole to form the main hole section of the valve sleeve, a reducing hole
section of the valve sleeve, and a valve sleeve flow groove connected to the
fourth oil port on the outer wall of the valve sleeve.

2. In the main valve body of the AAK hydraulic counterbalance valve, there is a
fixed first valve seat. The main valve spool slides and fits with the main
valve body, dividing the inner chamber of the main valve body into the first
and second chambers connected to the oil inlet, as well as the control chamber.
The second chamber is equipped with a second valve seat and elastic components.

3. There are multiple U-shaped grooves along the axial direction on the
circumferential surface of the main valve spool. The valve spool is located in
the main hole section of the valve sleeve and can move left and right. On the
left side of the second valve spool reducing section, there is a protrusion for
opening and closing the valve seat transition hole section, and on the right
side of the protrusion, there is a valve spool throttle hole. When the pressure
oil enters, the valve spool begins to move left and gradually exposes various
radial throttle holes. The flow area can be relaxed and increased, and the
hydraulic counterbalance valve can timely buffer the pressure peak generated by
load impact.

After the plan is confirmed by Pozo, our sampling master can start working, and
it is estimated to be another month of hard work. Come on, masters! I am also
very happy today. AAK can provide help to others again, and at the same time,
AAK has another new customer.

With AAK hydraulic counterbalance valve, the equipment has no shaking or
impact, and you can also give it a try!
