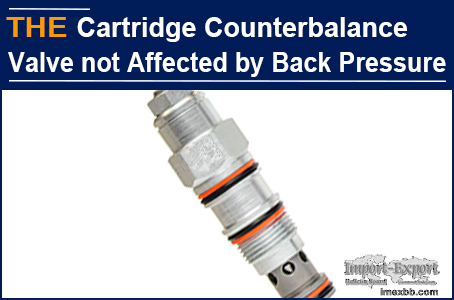

AAK Hydraulic Counterbalance Cartridge Valve not Affected by Back Pressure

Dorian is from a Greek hydraulic equipment company and is responsible for the
procurement of hydraulic components. At the beginning of the year, they
developed a new hydraulic crane, which requires the use of hydraulic
counterbalance cartridge valve. Dorian worked with a local manufacturer to make
samples. During the equipment commissioning, it was found that the hydraulic
counterbalance cartridge valve had no overflow function due to the back
pressure. The hydraulic system was tested separately, but it was normal. Dorian
felt that there was a hidden danger in the original design of the hydraulic
counterbalance cartridge valve. The engineer thought that the function of the
hydraulic counterbalance cartridge valve was not up to standard. Dorian was a
little embarrassed.

Dorian found website of AAK hydraulic valves on Google, and noticed that AAK
had been supplying first-line brand hydraulic valves such as HydraForce, SUN
Hydraulics, and HAWE for many years. Maybe he saw hope and sent an email to ask
for help. According to what he said, the hydraulic counterbalance cartridge
valve has no overflow function under the influence of the back pressure of the
closed central circuit. I told him that it was probably a flaw in the design of
the original hydraulic counterbalance cartridge valve. According to his
hydraulic schematic diagram and original drawing of hydraulic counterbalance
cartridge valve, AAK engineer not only determined that the problem was in the
original design, but also had a solution. After knowing these, Dorian asked AAK
to make samples. After 50 days, AAK sent 10 hydraulic counterbalance cartridge
valve samples.

4 weeks after AAK hydraulic counterbalance cartridge valve samples were sent,
Dorian told me that the equipment debugging was smooth and the market promotion
had been started. I was asked to wait patiently for the batch order.

The rapidity and stability of AAK optimized hydraulic counterbalance cartridge
valve is the key to smooth equipment commissioning. It solves the contradiction
between the rapid response and stability of the equipment in the early stage,
and the flow change is moderate, the movement is stable, the safety overflow
function is not affected by the back pressure, which can be applied to the
closed center and open center hydraulic systems.

1. The middle section of the hydraulic counterbalance cartridge valve spool is
provided with an inner concave ring, which is also the valve inlet. The right
end of the inner concave ring has a cone, on which there is a two-stage stepped
taper ring. The cumulative area of the cone is the same as the area of the
cylinder end face at the right end of the counterbalance cartridge valve spool.
This not only challenges the selection of design data, but also challenges the
processing settings and processing technology.

2. The cylindrical end face at the right end of the hydraulic counterbalance
cartridge valve spool is equipped with a balance adjusting spring. The
adjusting screw at the back end of the spring is sealed with the back end of
the counterbalance cartridge valve body, and controls the expansion and
contraction of the counterbalance adjusting spring.

3. Fixed damping is installed between the inlet of the automatic closing valve
and the pilot oil port. The hydraulic automatic closing valve is used in
parallel with the adjustable flow valve to compensate the pressure without
being affected by the back pressure.

AAK hydraulic counterbalance cartridge valve, not affected by back pressure,
you can also try a small order!
