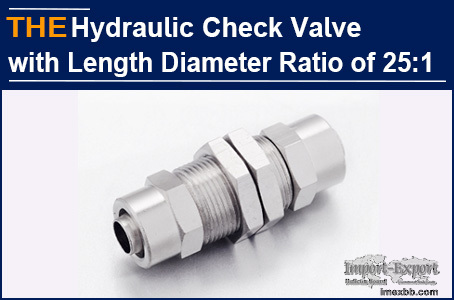

AAK Hydraulic Check Valve with Length Diameter Ratio of 25:1

For the hydraulic check valve with the length diameter ratio of 25:1, Andrew
contacted with more than 20 hydraulic check valve manufacturers online and
offline in 1 week, but none of them was willing to offer. The boss was very
dissatisfied and Andrew was very headache.

Andrew from Spain left a message on AAK Hydraulic Valve website some time ago:
can you make samples for a hydraulic check valve with a length diameter ratio
of 25:1? After communication, we learned about his current purchasing
situation. Because he saw on B2B that AAK published an article on the length
diameter ratio of a hydraulic relief valve, then he contacted us with a try
attitude. According to Andrew's drawings, it is a long and thin shaft hydraulic
check valve with very complex structure. No wonder no hydraulic valve
manufacturer is willing to offer. I told him that this hydraulic check valve
has a length to diameter ratio of 25:1, which was 5 times that of conventional
valves, and it was difficult to cut. Especially in terms of accuracy, it was
very particular about equipment, operators and technology. We are willing to
make samples. If AAK sample fails, there is no need to find the hydraulic check
valve manufacturer in Ningbo.

Andrew may have no choice but to accept the sample first and then quote. After
10 days, AAK sent 3 hydraulic check valve samples. The key to machining the
thin and long shaft of this hydraulic check valve is how to control the thermal
deformation of the workpiece. During cutting, the workpiece is high in
temperature and easy to deform. On the 3rd day after Andrew received the
samples, he informed by email that his team had approved that AAK hydraulic
check valves not only had the length diameter ratio of 25:1 in place, but also
had the surface roughness and geometric accuracy up to standard.

For hydraulic cartridge valves with large length diameter ratio, AAK has
accumulated the following 3 experiences after years of exploration:

1. Drill and fixture: long drill to be matched from hardness, heat resistance
and impact toughness. When the clamping method of one clamp and one top is
adopted, the elastic movable center is also used to compensate the thermal
deformation and elongation, so that the elongated shaft can be freely extended
after being heated to avoid thermal deformation.

2. Cutting amount and cutting fluid: according to the length diameter ratio,
the drilling amount is reasonably selected. This is a skill. During cutting,
the cutting fluid shall be poured sufficiently to suppress the rise of the
working temperature and thus the thermal deformation.

3. The tool shall be kept sharp and the tool changing frequency shall be
increased to 3 times. It can effectively reduce the friction heat between the
tool and the workpiece, and control the thermal deformation from the source.

This morning, I received the PO for this hydraulic check valve from Andrew. He
told me that although the customer complained that their quotation was slow,
they were the fastest and the only supplier of the sample success at only one
time.

AAK hydraulic check valve, with unique skills on the length diameter ratio,
welcome to try!
