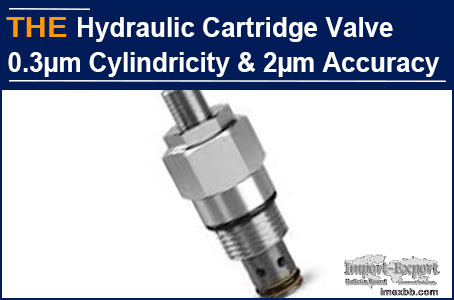

AAK Hydraulic Cartridge Valve with 0.3µm Cylindricity & 2µm Accuracy

Adgar from Russia is an old customer of AAK. Recently, he introduced me a
customer named Coko. This should be the 4th time for Adgar to introduce me new
customers. Coko’s company has developed a hydraulic power unit for aviation
systems, but encountered accuracy issues when purchasing hydraulic cartridge
valves. In early March of this year, Coko purchased a high-precision hydraulic
cartridge valve from an old supplier. But the equipment debugging was not
smooth, and the root cause was that the cylindricity of the hydraulic cartridge
valve spool exceeded 0.8µm, while the accuracy also exceeded 4µm. The engineer
requested that the cylindricity of the hydraulic cartridge valve spool be
controlled within 0.3µm and the accuracy be within 2µm, but the original
hydraulic cartridge valve manufacturer gave up. After a week of sourcing, there
was no manufacturer who is willing to try.

Coko contacted her good friend Adgar, which facilitated the connection between
AAK and Coko. According to Coko's description, I know that the machining
difficulty of this hydraulic cartridge valve is high, but similar hydraulic
cartridge valves produced by AAK, were used on aircraft by Russian customers in
2019. After learning about it, Coko was very happy and requested us to ship 30
hydraulic cartridge valves as soon as possible. Fortunately, we still have
stock of this hydraulic cartridge valve, and in about 2 weeks, she received the
bulk shipment without any delay in his prototype development.

Yesterday, Coko sent us an email to order 500 hydraulic cartridge valves, as
their prototype received positive feedback from the customer. Their engineers
are very satisfied with the stable manufacturing quality of AAK hydraulic
cartridge valves. All 30 hydraulic cartridge valves meet the requirements of
spool cylindricity within 0.3µm and the accuracy within 2µm.

The level of accuracy not only depends on the manufacturer's awareness of
manufacturing quality, the technicians' understanding of quality, but also good
equipment. The precision machining of this hydraulic cartridge valve is carried
out by AAK using Japan Hasegawa high-precision lathe, with full axis servo
drive and no cam. Linear guide rail, ball screw forced automatic lubrication
centralized lubricator, can dynamically control the accuracy of processing
components. The cyclone milling unit adopts a hollow design, which is not only
convenient for operation but also has stable accuracy. The most crucial thing
is to use special transmission bearings, which solve the accuracy that most
lathes cannot solve, and ensure the cylindricity and accuracy of the hydraulic
cartridge valve spool.

AAK hydraulic cartridge valve, with a cylindricity of 0.3µm and an accuracy of
2µm, welcome to give it a try!
