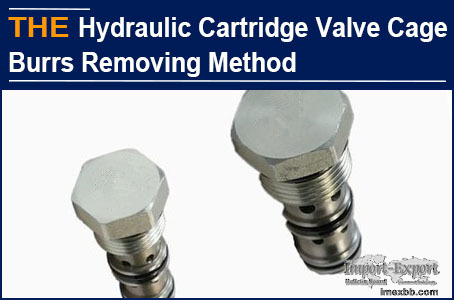

AAK Hydraulic Cartridge Valve Cage Burrs Removing Method

A while ago, someone left a message on the website of hydraulic cartridge
valve manufacturer AAK: How do you handle the fine burrs on the edges and
corners of the hydraulic cartridge valve cage? This is a detailed issue that
is often overlooked by most hydraulic cartridge valve manufacturers.
Although his IP comes from Greece, I was not sure if he is a peer of
hydraulic cartridge valve manufacturers or a purchaser. After two rounds of
communication, it was learned that Apollo is an engineer from a hydraulic
equipment company in Greece. They have been purchasing hydraulic components
from hydraulic cartridge valve manufacturers in China for 3 years, and there
are always some defects, such as residual burrs on the edges and corners of
the hydraulic cartridge valve cage. They often have to manually handle these
burrs, which has delayed their production progress and is very helpless.

I was not in a hurry to tell Apollo, how hydraulic cartridge valve
manufacturer AAK removes burrs and residues from the valve cage. Instead, I
suggested that if he gives it a try from AAK, he may have changed his view
on hydraulic cartridge valve manufacturers in China. Apollo seemed a bit
hesitant, I can understand. A week later, Apollo sent an inquiry for a
hydraulic cartridge valve that was equivalent to SUN standard part. After
Apollo received AAK price, he did not give any comments, but just said: If I
could learn how AAK can remove valve cage burrs, I would try the order
first. I knew, Apollo still didn't trust AAK very much. Without trust, it is
difficult to make a deal, which is the basic logic of business.

I told Apollo that hydraulic cartridge valve manufacturers can basically
avoid valve cage burrs as long as the precision machining is done in place.
If there are indeed hidden problems, they can use the most traditional
method of "friction". Apollo said that this mode is too time-consuming and
not thorough, and he seemed to disagree. I sent him a video of AAK, a
hydraulic cartridge valve manufacturer, on how to automate and remove valve
cage burrs using the principle of friction. The next day, he confirmed the
order and admired the wisdom of AAK engineers. In fact, this is very simple.
In the earliest days, the removal of burrs on metal parts was done manually
and slowly with sandpaper. Hydraulic cartridge valve manufacturer AAK
designed an automatic deburring equipment based on this and combined with
the working mode of cement mixers.

Hydraulic cartridge valve manufacturer AAK does it this way: After the valve
cage is finished with precision machining, 500 valve cages are placed into
the equipment cylinder, and then filled with spherical abrasive particles.
After starting the equipment, the valve cage continuously rotates in the
abrasive particles, playing a role in polishing the edges and corners of the
valve cage. The equipment uses a vibration motor as the excitation source.
When the vibration motor rotates at high speed, the material in the cylinder
moves in a circular motion in a horizontal plane, and the cylinder can
spiral up, ensuring that each valve cage can friction 360 degrees without
dead angles. Is it still necessary to worry about burrs when the valve cage
has been moving in such equipment for more than 4 hours? 4 hours, 500
hydraulic cartridge valve cages, this efficiency is not low.

AAK uses details to distinguish itself from hydraulic cartridge valve
manufacturers in China, and you can also give it a try.
