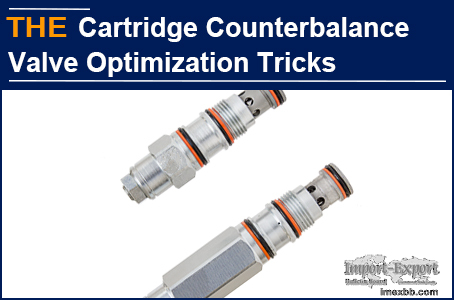

AAK Hydraulic Cartridge Counterbalance Valve Optimization Tricks

Coleman is from a hydraulic equipment company in Ecuador. He has been engaged
in procurement for 3 years and has been quite smooth. In the second half of
this year, the hydraulic winches they have sold out for 8 months was complained
by customer that they were slipping under load and were prone to shake. After
checking, it was found that the hydraulic cartridge counterbalance valve in the
system was abnormal. The original manufacturer of the hydraulic cartridge
counterbalance valve said that under such working conditions, the hydraulic
counterbalance valves would need to be replaced every 8 months. The boss was
not satisfied with this short service life and asked Coleman to find a
hydraulic counterbalance valve manufacturer who can guarantee a longer service
life. Coleman was surprised that all other hydraulic counterbalance valve
manufacturers he contacted said that the original manufacturer was correct.

Coleman saw AAK on Google and sent an email for inquiry with the attitude of
trying. After communication, we learned his purchasing status. According to his
hydraulic schematic diagram, working condition requirements, and hydraulic
counterbalance valve drawings, AAK engineers also agreed with the opinions of
the original manufacturer, but AAK has an optimization plan, and can guaranteed
a service life of at least 16 months. When Coleman learned that AAK wanted to
optimize the structure of the original hydraulic counterbalance valve, he
hesitated and worried that it would affect the function, and his engineers may
not accept it, so there was no news from him for a week. 7 days later, Coleman
told us that he had no choice but to pay for the development cost by himself to
request AAK samples. After 45 days, AAK sent 12 hydraulic counterbalance valve
samples.

Last week, Coleman sent an email to us that the equipment installed with AAK
hydraulic cartridge counterbalance valves ran stably without any functional
impact. 8 months have passed and the customer has no complaints. I told him
that even in another 8 months, the customer wouldn't complain. AAK optimized
the hydraulic counterbalance valve with minor changes in 3 aspects, which is
not only more stable and better, but also more durable.

1. In the inner chamber of the hydraulic counterbalance valve spool, the boss
for axial limit is machined. The piston slides in the second chamber. The rear
end of the piston is equipped with a one-way throttling device (the first
damper and the second steel ball).

2. The main valve spring adopts multiple spring structures with different
stiffness, and the chute on the cone side of the valve spool can control more
accurately and sensitively to prevent the load from stalling.

3. The second steel ball is placed in the third chamber of the piston and
matched with the valve port of the first damper. The rear end of the screw plug
is provided with a damper, which has two damping links. The utility model
reduces the system pressure, reduces vibration, is beneficial to stability, and
is durable.

AAK hydraulic cartridge counterbalance valve, stable and durable, you can also
try a small order!
