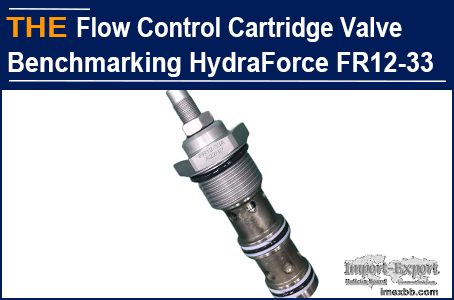

AAK Flow Control Cartridge Valve Benchmarking HydraForce FR12-33

This week, we’d like to introduce a cartridge valve equivalent to HydraForce
FR12-33. It is a screw-in, an adjustable, pressure compensated, priority type
with reverse flowcheck flow control valve. The regulated flow increases from
closed to fully open with counter-clockwise adjustment rotation. The valve will
maintain the set flow regardless of pressure variations on the regulated or
bypass port.

Last May in 2022, a hydraulic cartridge valve customer in Russia found AAK when
looking for a hydraulic cartridge valve manufacturer in China on Google. He
sent us an inquiry for 5 pcs of HydraForce cartridge valve FR12-33, with an
annual demand of 500 pcs. Previously, their company purchased it from an
Italian supplier.

For this model, several cartridge valve manufacturers in Ningbo have existing
production procedures. This Russian customer ordered 5 pcs from each factory,
they will test them for 1 year, and chose one to place the annual order.

Last week, we were very happy to learn from the Russian customer that AAK
cartridge valve E-FR12-33 has passed their internal testing after 1 year of
use, the function and performance is the best among the several manufacturers.
The samples from some manufacturers leaked or blocked in less than 1 year.

AAK hydraulic cartridge valve E-FR12-33 two advantages:
1. Pressure Rating 240 bar (3500 psi), benchmarking HydraForce
2. Its service life is 2 times that of its domestic peers

Technical parameters of AAK E-FR12-33 flow control cartridge valve:
Pressure Ratings: 240 bar (3500 psi)
Flow Ratings: 0-68 lpm (0-18 gpm) Note: Priority + bypass, 3-ported
0-45 lpm (0-12 gpm) Note: Bypass closed, 3-ported
Inlet Flow Rating (Priority + bypass): 76 lpm (20 gpm) Note: Nominal
114 lpm (30 gpm) Note: Maximum
Internal Leakage: 100cc/minute (6 cu.in./minute) at 207 bar (3000 psi)
Required adjustment torque: 1.7 Nm (15 in.-pounds) at 207 bar (3000 psi)
Temperature: - 40 to 120 °C
Cavity: 12-3

AAK E-FR12-33 flow control cartridge valve, benchmarking HydraForce FR12-33,
has been approved by customer in Russia after 1 year of testing. You are
welcome to try it out.
