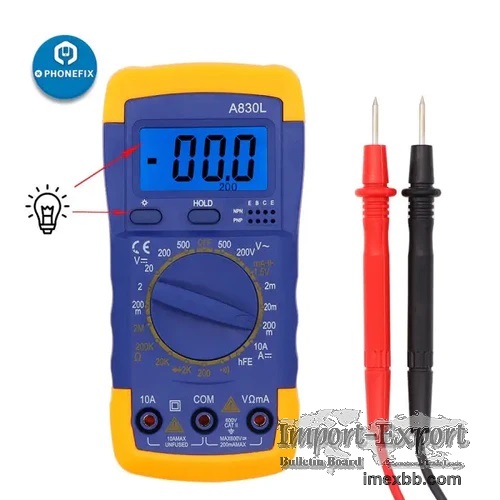

A830L LCD Digital Multimeter Intelligent Mini Tester

B830L LCD digital multimeter intelligent current resistance voltage tester
test meter multi AC DC digital meter, A830L AC DC voltage current tester
digital multimeter for mobile phones repair

A830L AC DC OHM Volt Current Tester Digital Multimeter Voltmeter Ammeter

Product Features :
Multifunctional: Can accurately measure DC/AC voltage, DC current,
resistance.
Diode,transistor, HFE, audible continuity test.
With LCD backlight display, convenient to read data in dark.
More advantages: Manual range, data hold.
Widely use: It's a perfect tool for the laboratory, factory and home.

Product introduced :
Vibration cover, streamline design, comforable feel.
Large screen display, clear fonts.
Metal shield plate, magnetic, strong anti-interference performance.
Full protection, anti-high voltage circuit design.
Self-recovery fuse protection circuit design.

Product Features :
Large screen fluorescent display legible, simulation of bars and unit symbol
display.
Table pen jack exquisite workmanship, smooth and fastened into the table
pen.
Dial stalls accurate, durable, rotating stall completely positioned to the
stall, accurate positioning. Feel comfortable, strong sense of pause between
stalls.

Specifications :
Model: A830L
Display Count: 2000
DC Voltage Range: 200mV/2V/20V/200V/600V
DC Voltage Resolution: 100uV/1mV/10mV/100mV/1V
AC Voltage Range: 200V/600V
AC Voltage Resolution: 100mV/1V
DC current: 2mA/20mA/200mA/10A
Resistance Range: 200Ω/2kΩ/20kΩ/200kΩ/2MΩ
Resistance Resolution: 0.1Ω/1Ω/10Ω/100Ω/1kΩ
Backlight: Y
Manual Ranging: Y
Data Hold: Y
Power Supply: 9V Battery(not included)
Item weight: 103g
Item size: 140x66x32 mm

Package includes :
1pcs x A830L Multimeter
1pcs x Test Cable


Note: Battery is not included in the package!!

Minimum Order: 1 pieces
