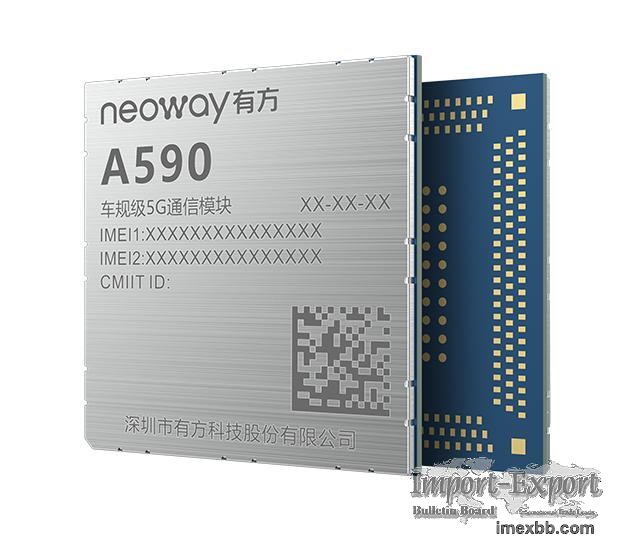

A590

A590 is a 5G cv2x module which is designed specially for the smart IoV
industry. It supports both 5G-SA and 5G-NSA networking modes. The module has
excellent RF performance and covers a wide range of frequency bands. It also
supports the 4G and 3G networks and can be operated in Sub-6 GHz bands. The
A590 5G V2X Cellular Module series can be used in most regions including China,
Europe, Southeast Asia where 5G networks are deployed. It also supports 4G and
3G networks for application in areas not covered by 5G networks.

Product Features
Sub-6G+V2X
Full-function, compact size
DSDA
IATF16949
Rich network protocols

Specifications
Supply Voltage 5G: 3.3 V to 4.3 V, typical: 3.8 V
V2X: 5 V (DC)
Dimensions 52.0 mm x 52.0 mm x 2.65 mm
Package LGA
Operating temperature -40℃ to +85℃
Interface PCIe Gen 3
USB 2.0/3.1
I2S & I2C
UART
RGMII
USIM (1.8 V/3.0 V) ×2
Frequency Bands 5G: n1/n3/n5/n7/n8/n20/n28/n39/n40/n41/n77/n78/n79;
LTE: B1/B3/B5/B7/B8/B20/B26/B28/B34/B38/B39/
B40/B41 ;
UMTS: B1/B3/B5/B8
V2X: Globle -ITS 5.9 5855-5925
Protocol RNDIS/ECM/RMNET/IPv4/IPv6
Region China/ Europe/SEA
