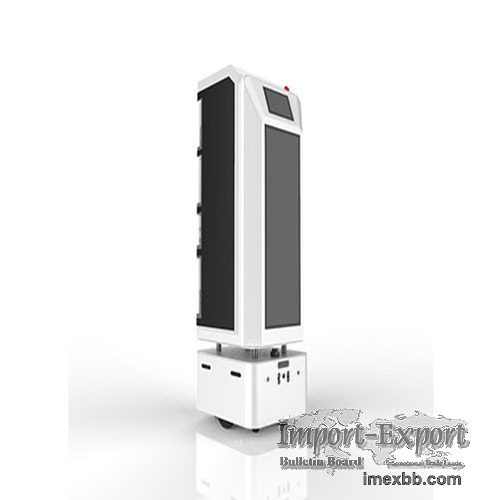

A406 Grocery Shopping Robot

A406 Grocery Shopping Robot
The grocery store robot uses simple and effective modular design, contactless
delivery, so that the service is more peace of mind. Our grocery robot relies
on self-developed positioning and navigation technology to ensure positioning
accuracy and flexibility.

A406 GROCERY SHOPPING ROBOT CORE ADVANTAGES
A406 Grocery Shopping Robot Core Advantages
1. Unmanned Vending

2. Self-settling

3. Autonomous Navigation

4. Fixed Route Cruise

5. Intelligent Obstacle Avoidance

6. Autonomous Charging

7. Fast Power Exchange

MORE INFO ABOUT A406 GROCERY STORE INVENTORY ROBOT
01
Can i buy retail grocery robot sample for testing?
Yes, we have mobile robot platform with basic functions for your preliminary
stage testing.

02
What are the application scenarios of retail grocery shopping robot?
Hospitals, hotels, streets, parks, schools, squares.

03
Can you please share your capabilities deck for grocery store inventory robot
solutions?
We've been an OEM/ODM delivery robot company since 1995, and we've experienced
over 100 successful autonomous delivery robot project worldwide.

We can be your partner to support your idea to mass production, and our project
team will take part in the solution from design, development, tooling,
manufacture, and after-sales Services support.

A406 RETAIL ROBOT GROCERY SHOPPING ROBOT SPECIFICATION

Model No: A406
Body & Tray The sealed case for sale (custom design available upon request)
Load Weight The maximum total load capacity of the chassis 60KG (weight can
be customized)
Operating Climbing angle ≤9 °, ramp height ≤ 10CM
Maximum operating speed 0.8M/S (speed adjustable)
Indoor navigation operation + semi-outdoor navigation operation (within
40 meters of the open area, low-speed driving may not drive into the motorway
and vehicle mix)
Obstacle Crossing ≤1CM
Wheel Hub Design Master wheel with motor control*2 + driven wheel*4
Navigation Positioning Accuracy ±50mm
Robot System ROS
Navigation and Barrier Avoidance Autonomous planning navigation and
obstacle avoidance, SLAM and multi-sen
Sensors Monocular Camera 2
RGBD Camera 1
Infrared Night Vision Sensor 4*2
LIDAR 1
Ultrasonic Radar 3
IMU 1
Collision Avoidance Chassis front bumper + crash emergency switch
Speaker Support
Microphone Body Design Can Add as Needed
Powertrain Battery Rated Voltage: 36V
Capacity:20Ah
Endurance time: Greater than 6H (no load)
Charging Charging method: Manual charging / automatic charging
(to achieve low-battery automatic homing charging)
Charging time:4H
Robot Router Dual-band: 2.4GHz+5.8GHz, 802.11 a/b/g/n/ac
Function Unsold
Self-settlement
Autonomous Navigation
Fixed route cruising
Smart Obstacle Avoidance
Self-charging
Quick power change
Housing Metal
Waterproof Customizable IPX4 waterproof rating
Temperature & Humidity Operating Temperature 5℃~50℃
Operating Humidity 0~80%
Storage Temperature -20℃~65℃
Storage Humidity 0~80%

As one of mobile robot companies, we can offer different kinds of service
robotics products for sale, anything you need, please contact us.

Minimum Order: 3000 sets
