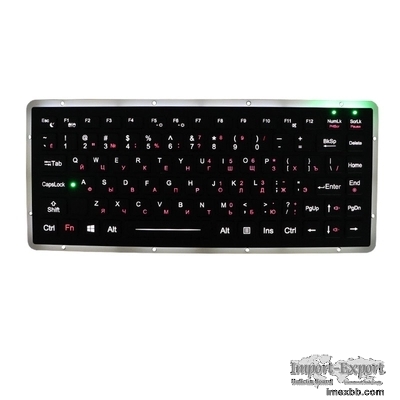

86 Keys Dot Matrix Ruggedized Keyboard Marine Keyboard With Backlit

86 Keys Dot Matrix Ruggedized Keyboard With Backlit Marine Keyboard

DESCRIPTION:

86 keys IP67 dynamic waterproof special professional compact format keyboard
with durable polymer keys.The high quality rugged aluminum alloy panel is
processed by CNC. With 12 function keys(F1, F2, ... F12) on the top line of
keyboard, sealed and rugged matrix PCB with carbon-on-gold key switch
technology with stroke 1.0mm, which is extremely good tactile feeling for fast
and accurate data input without any noise, one complete silicone rubber along
the top panel for easy mounting & sealing tightly with cabinet, rear panel with
through-hole for easy mounting and sealing. Adjustable backlight included (
White or Red etc). FN + Clean combination keys for easy cleaning without taking
the keyboard away from PC to avoid mis-operation or mistyping. High quality
durable and scratch-proof black titanium on the aluminum alloy panel, which is
good for outdoor application with direct rain and very harsh environments with
humidity, much dynamic water, oil, salt mist etc. Dot matrix with FPC PIN
without electronic controller included.

DIMENSIONS: 270.0mm(L) x 110.0mm(W) (Top Panel)

Application:

This keyboard is ideal for below wide applications:
MEDICAL: Lab, hospital, clinic, dental, such as carts, diagnostic equipment,
operation rooms, dialysis centers etc;
MATERIAL HANDLING: Mobile keyboard, data entry, assembly line etc
MILITARY: Army, Navy, Air force
INDUSTRIAL: Industrial automation, pharmaceutical, oil and gas, food and
beverage, warehouses, marine console, rugged
laptop

MECHANICAL DATA:
Actuator/keys:
86 keys, durable and robust polymer keys.
Key top style: Protuberant rectangular keys, laser engraved & etched legends &
raised braille on keys are available
Actuation Force:
1.80 N+/-0.1N for key 13.6mm x 13.6mm (pressure point ), 2.5 N+/-0.10N for key
13.6mm x
31.6mm (pressure point)
Switch life: more than 5 million of operations.
Plate:
High quality ruggedized aluminum alloy top panel processed by CNC
Dimensions:
270.0mm x 110.0mm (front panel)
ELECTRICAL DATA :
Supply Voltage: +5V DC +/-5%
Current Rating: appr. 250mA (with backlight on)
Lifespan > 5 years
Switch Contact Material: Carbon-on-Gold key switch technology PCB
Interface:
dot matrix
OS: All Windows, Linux, Unix, Mac OSX, Android
RELIABILITY:
RoHS Compliant, CE and FCC, ESD
Protection Level: IP67(front panel)
Vandal resistant IK08
Key Lifespan >5 million actuations
MTBF
>20000H

MTTR <30min
ENVIRONMENTAL ADAPTABILITY :
Operating Temperature: -40oC to +60oC
Storage Temperature: -45oC to +70oC
Operating RH: 3-95%
Atmospheric Pressure: 60-106Kpa
Damp heat test at +40oC: 21 days, IEC 60512-6
Dry heat test at + 85oC: 10 days, IEC 60512-6

86 Keys Dot Matrix Ruggedized Keyboard Marine Keyboard With Backlit 0



Ruggedized Keyboard Actual Photos:



Keyboard with white
backlight

86 Keys Dot Matrix Ruggedized Keyboard Marine Keyboard With Backlit 1

Back View

86 Keys Dot Matrix Ruggedized Keyboard Marine Keyboard With Backlit 2



86 Keys Dot Matrix Ruggedized Keyboard Marine Keyboard With Backlit 3







FAQ
Q: Are you trading company or manufacturer ?

A: We are a professional manufacturer for industry/military/medical/vehicle
keyboards.



Q: How long is your delivery time?

A: Generally it is 1-2 Weeks after payment is received. If larger quantity,
delivery time would be 3-5 weeks.



Q: Do you provide samples ?

A: Yes, we could offer the sample of one quantity first before large quantity
orders.



Q: What is your terms of payment ?

A: 100% payment via Paypal T/T, Western Union or Alibaba Trade Assurance.
If you have another question, pls feel free to contact us.
