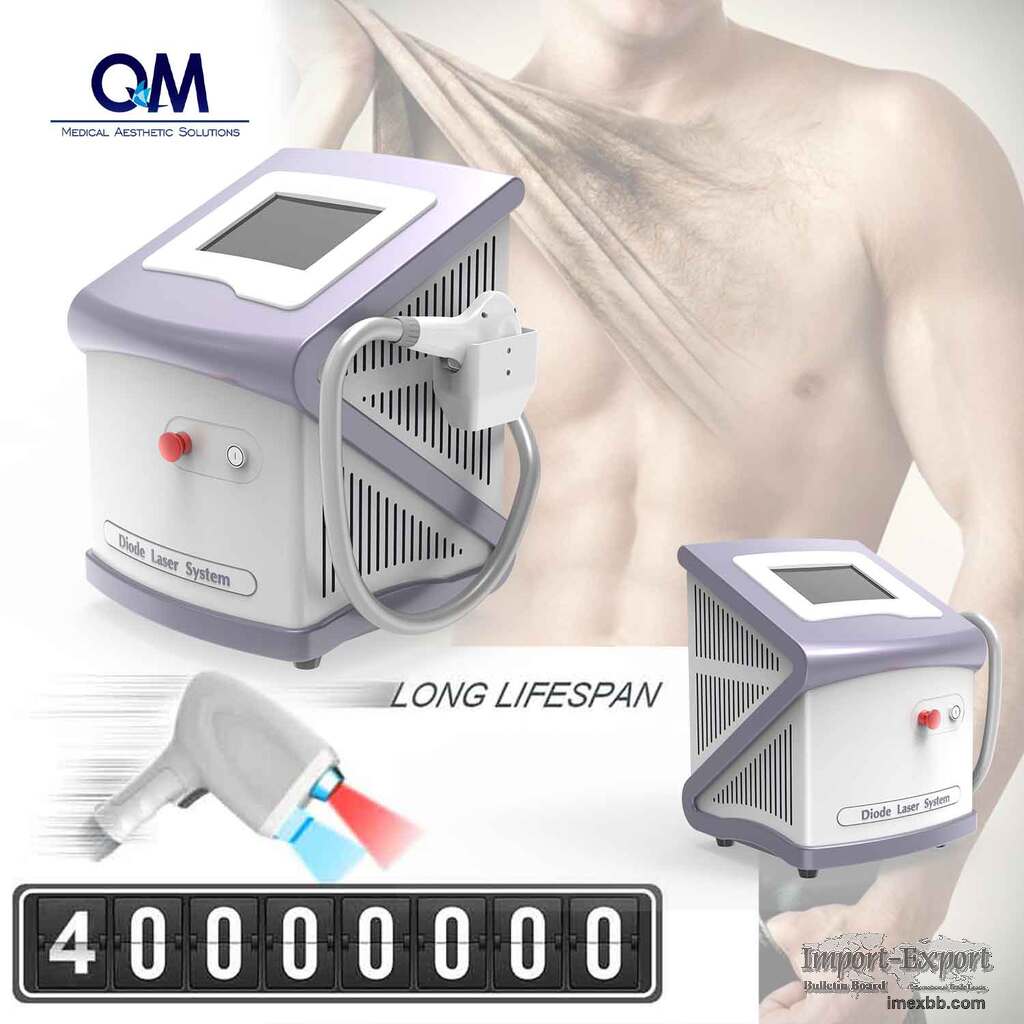

808nm Diode Laser Machine

Model: QM-808

2024 CE Certificate Portable 1000w 808nm Diode Laser Permanent Hair Removal
3 Waves Diode Laser Hair Remover Skin Rejuvenation Equipment


Applications:

For any unwanted hairs on areas of face, arms, armpits, chest, back, bikini,
legs and etc.(including light, blond and thin hairs)


Working Principle:

Diode laser hair removal technology is based on the selective dynamics of
light and heat. The laser goes through the skin surface to reach the root of
hair follicles; light can be absorbed and converted into heat damaged hair
follicle tissue, so that hair loss regeneration without injury surrounding
tissue. Slight pain, easy operation, the most safe, technology for permanent
hair removal now.
It is performed using gold standard Triple-wavelength 755nm,808nm,1064nm
diode laser technology, with energy penetrates deep into the dermis with
high average power and a rapid 10 pulse-per-second repetition rate to heat
the hair shaft and hair follicle, rather than destroy the oxygen
organization around hair follicle.
Meanwhile, contacting surface cooling technology applied on the Sapphire tip
can eliminate the heat effect attributed to optical energy, greatly
improving both the treatment performance and safety.


Technical Specifications:

Laser Type Diode Laser
Laser Stacks Power 1000W
Wavelength (Spectrum) 755nm+808nm+1064nm
Energy Density (Fluence) 166J/cm² (Continuously adjustable)
Spot Size 15x15mm²
Dual Chiller spot size 25*25mm²
Pulse Repetition Rate 1-10Hz
Pulse Duration 10-400ms
Pulses Single

Cooling • Continuous Sapphire contact cooling(-5ºC~1ºC)
• Air cooling
• Closed water circulation cooling
Stand-by Working Continuously for 20 hours
Display 10.4" True Color LCD Touch Screen
Electrical Requirements 110/230VAC, 15/20A max., 50/60Hz
Net Weight 45kgs
Dimensions (WxDxH) 450*550*680 mm

Minimum Order: 1 sets
