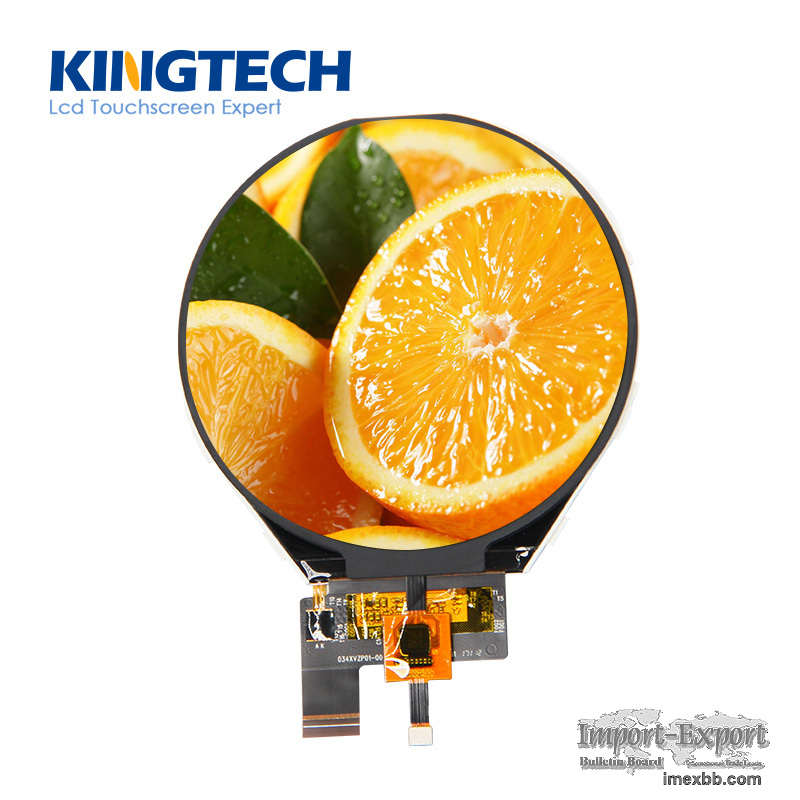

800X800 Resolution 3.4 Inch Round TFT LCD Display

We make sensor and bond FPC in our own lcd screen factory and buy lcd screen
from professional lcd screen maker. We can do OCA and LOCA bonding in our
own facility.

Kingtech 3.4inch IPS/ free/all/wide viewing angle TFT LCD display is our
most leading product. The 3.4inch resolution is very high, it's 800x800. It
has a capacitive touch and has an existing HDMI Board. The HDMI board can be
connected to a raspberry pi.

The 3.4 inch 4k lcd display also has a Linux/Android main board, the board
can test the 3.4inch touch function.

We, as one of 4k lcd panel manufacturers, is able to offer qualified prodcts
and any requirements for custom 4k lcd panel will be welcomed.

Features of 800X800 Resolution 3.4 Inch Round TFT LCD Display

All/Free/Wide viewing angle

800x800 resolution

Round / Circle / Circular

IPS type

High brightness/sunlight readable

Support capacitive touch

HDMI Board, Linux & Android Board

Specification of 800X800 Resolution 3.4 Inch Round TFT LCD Display

Item 3.4 inch round TFT module display
Model No PV03400AR39A
Resolution 800*800
Outline Dimension 99.0(W)*96.6(H)*3.98(T)
Active Area(mm) 87.6(W)*87.6(H)
Interface MIPI 3 lane
Touch panel Capacitive touch panel
Viewing Angle All
Driving IC ILI9881C
Display Mode Transmission / Normally Black / SFT
FPC type ZIF
PIN 39
Operating Temperature -20℃~70℃
Storage Temperature -30℃~80℃
Brightness 350nits
Board HDMI board

Application of 800X800 Resolution 3.4 Inch Round TFT LCD Display

The 3.4 inches 800x800 round display has a wide application field. It can be
used for the thermostat, automotive device, handheld device, industrial
control, and smart home equipment.
