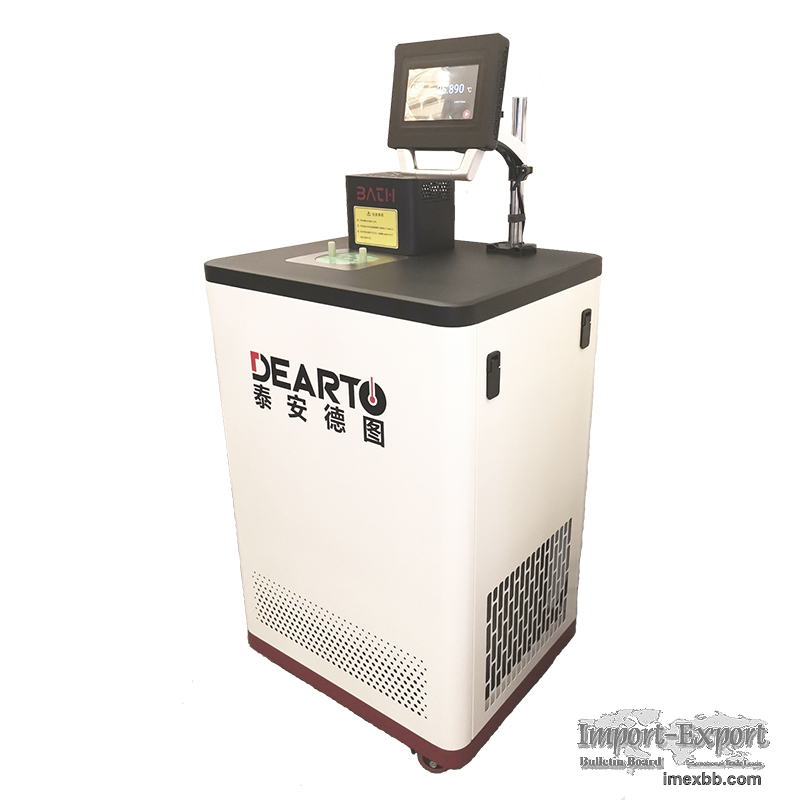

-80 C ultra-low temperature touch screen intelligent precision liquid therm

Products Description
DTS-CT intelligent precision thermostatic bath is a new type of intelligent
thermostat introduced by our company. It adopts touch screen control and
operation, completely intelligent man-machine interface, and the control is
more convenient, simple and practical. A dual-cavity side stirring technology
is used in the structure to make the constant temperature bath reach the ideal
uniform temperature field through intelligent PID adjustment, which can meet
the verification / calibration work of various temperature sensors such as low
temperature thermocouples, industrial thermal resistors, pressure thermometers,
bimetallic thermometers, glass liquid thermometers, etc.
Functional characteristics

1.Intelligent Manipulation
Large touch screen control, intelligent man-machine interface, multi-function
display window, control more intuitive, simple and fast;
2.Slope heating
The temperature control rate is adjustable, the heating rate is set according
to the actual verification or calibration, and the temperature rise is uniform,
which meets the verification / calibration of various temperature switches.
3.Volatility tips
Wave motion of 10 or 1 min can be displayed, the fluctuation can be calculated
automatically, and the temperature is judged intuitively.
4.Intelligent rehydration
The automatic rehydration function can be set up, and the oil transportation
system can complete the rehydration function after starting, so as to avoid the
safety and unstable factors caused by the reduction of liquid level.
5.Intelligent mixing
At room temperature, without starting temperature control, the control system
automatically closes the stirring motor, prolongs the service life of the
equipment and reduces noise.
6.Double sensor overheating protection
Built-in hardware and software dual protection, using dual sensors to monitor
the operation process.
Hardware overheating protection, completely separated from the main control
system independent operation, overtemperature automatic power cut off, more
safe and reliable.
7.Precision temperature control
Adopt imported AA level temperature control sensor and variable parameter
temperature control algorithm to ensure the maximum rate"zero" overshoot
stability at different temperature points.
8.Excellent stability and uniformity of temperature field
Special structure, blocking stage heat insulation treatment, intelligent
adjustment of stirring speed, advanced adaptive control algorithm, so that the
constant temperature bath has excellent temperature field stability and
temperature field uniformity;
9.Multipoint calibration
Adopt multi-point calibration algorithm to realize built-in standard and
precision temperature measurement.
10.Communication function
Support USB 、WIFI、WLAN、 serial communication function;
11.Curves show free scaling
Real-time curve display, support multi-touch, free scaling function;
12.Ergonomic design
The intelligent temperature control instrument adopts three-axis mechanical
cantilever installation, the angle length is adjusted at will, does not occupy
the slot table space, is convenient to operate;
13.Composite thermal insulation design
A variety of insulation materials, composite insulation design, limiting
internal heat spillover.
14.Oil pollution prevention design
The countertop is designed with an integrated operating table, and the built-in
overflow loop prevents the liquid medium from flowing to the bath table, and
the removable stirring motor cover is convenient to clean up the oil pollution
quickly.
Product Paramenters
Patent certificate
