8-18kW High Voltage Coolant Heater Without Bracket DC 690V

AZ02-Series (8-18kW)Nominal Voltage DC690V High Voltage Coolant Heater
Without Bracket





Our High Voltage Coolant Heater is a cutting-edge heating system designed
specifically for high-voltage electric vehicles.
This innovative heater efficiently warms the coolant in the vehicle's
cooling system, ensuring optimal performance in cold weather conditions.

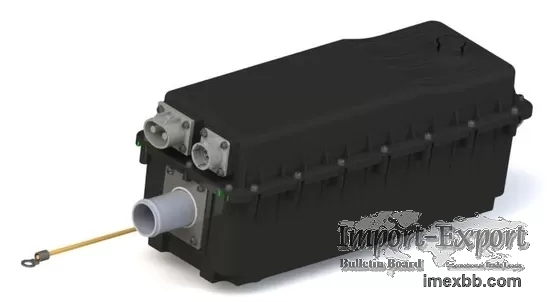

8-18kW High Voltage Coolant Heater Without Bracket DC 690V 0

HVCH AZ02 Series is a slender but powerful electric water heater, whose
maximum power being up to 18KW. Unlike the AS series, the AZ02 series
doesn't need outgoing line. More convenient installation, more concise
structure. A special lead wire is used for Ground, the length could be
customized. If the customers need different voltage or power, please contact
customer service.



HVCH AZ02-Series could quickly, consistently,powerfully and reliably heat
the vehicle or battery interior. The compact device ensures a constantly
high heat output of 8kW-18kW and allows for flexible use in a power range of
350 to 870 Volts. HVCH AZ02-Series features infinitely variable heat output
control by means of an integral control unit. This takes place either by
regulating the water outlet temperature or by limiting the maximum heat
output or power consumption. Furthermore, it is CAN-capable and transmits
key operating data to the vehicle system using an intelligent diagnostic
function.





Specification:



HVCH AZ02 Series
Heat Output 8-18kW
HV Voltage Range DC 350-870V
LV Voltage

DC 24V or 12V nominal
Efficiency > 95 %
Controllability Steps 100W
Dimensions 340*110*113mm
Weight 10kg
Temperature Range for Heating -40 to 90 ℃
Temperature Range for Ambient -40 to 125 ℃
Communication CAN or LIN2.1
Dielectric Strength 3500 V (DC)
IP Protection Class IP 67
EMC ECE R10 Rev. 5
Insulation Resistance ＞500MΩ
Service Life 10 years or 10,000 heating hours


8-18kW High Voltage Coolant Heater Without Bracket DC 690V 1



Product Features:



Ø Excellent Water Resistance.

During the actual operation, muddy roads and wet rainy days and long playing
in high temperature, all require our high voltage coolant heater excellent
waterproof performance.IP 67 Water and dust proof reports can be provided.



Ø Stepless Regulate Performance.

This takes place either by regulating the water outlet temperature or by
limiting the maximum heat output or power consumption.Our High Voltage
coolant heater has been equipted in thousands of vehicles for three years
,the good quality has been accecpted by the custmers.



Ø Reliable Self-Protection System

The protection system includes mechanical protection device and electronic
protection, which acts to shut the module down in reaction to a short
circuit, overload, or over-temperature condition. In addition, We add the
current fuse in the high voltage circuit.In addition to the temperature
sensor, there is also a mechanical temperature switch inside.



Ø Completely Separation of Water and Electricity

Water and electricity is completely separated.Different from other
manufacturers,we solve perfectly the contradiction between the heat
transmission efficiency with the Insulation requirement of DC 3500
V.Benefits from this technical improvement, our 870V (nominal voltage)
products have been mass produced and used in heavy dump trucks in 2021.



Ø PTC thermistor heater with self-controlled constant temperature.

PTC water coolant heater come with all advantages of the PTC heating
technology. Thanks to the PTC effect, the heating elements dynamically
adjust their power without exceeding a maximum temperature. High operational
reliability and energy efficiency without any additional switching elements.



8-18kW High Voltage Coolant Heater Without Bracket DC 690V 2



Application:



To guarantee a safe journey even in challenging climate conditions, vehicles
must be ready for operation right from the start.

Sufficient power of 25 to 35kw can meet the heating, defrosting, battery
heating and other needs of large vehicles. Users can adjust the power
according to the demand, control the power consumption. We also provide
customized service, which can be adjusted according to customer
requirements, such as voltage, power, etc



8-18kW High Voltage Coolant Heater Without Bracket DC 690V 3



Why Choose EVLINK's PTC Heater




Championing Sustainability
EVLINK is not just a brand but a movement towards a greener future.
Committed to promoting sustainability, EVLINK is on a mission to reduce the
carbon footprint through products that are not only energy-efficient but
also contribute to the global initiative of fostering a healthier and more
sustainable planet.

Safety Like No Other
Safety isn't just an add-on feature at EVLINK, it's a fundamental aspect
ingrained in every product designed. By integrating dual control systems and
high-voltage fuses, EVLINK assures the safe operation of its products,
safeguarding both the equipment and its users, and fostering a secure
environment in every application.
