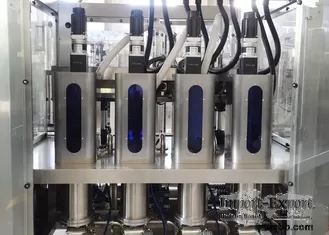

8.0KW Detergent Filling Machine 100ml Water Bottle Filling Machine

8.0KW Detergent Filling Machine 100ml Water Bottle Filling Machine​





Brief introduction



This Model of filling machine is anew generation of viscous liquid filling machine
developed by our company according to the demands of liquid washing upgrading. This
machine uses piston and cylinder block sliding to match the material pumping and
pushing, and uses servo motor to control the position.Open and close solenoid valve
and gas control filling head valve to reach high-precision quantitative filling. It
can be used for liquid filling of daily chemical, food, pesticide, medicine and
other industries. It adopts PLC programmable control,equipped with 6-inch touch
screen human-machine interface system,photoelectric identification mobile
(tracking) system adopts module form, achieving the design concept of automatic
bottle in,automatic tracking, automatic filling, automatic bottle out, no bottle
with-out tracking and no filling,ensuring the high quality and long-lasting and
stable performance.





Applications:



1. GNC-4LY is our new generation of viscous liquid filling machine.
2. It is suitable for liquid filling in daily chemical, food, pesticide, medicine
and other industries.
3. It has an excellent effect on the filling of household washing products such as
laundry detergent, detergent and hair shampoo.
4. It is also widely used in food filling.For example, honey, ketchup, chili sauce
and so on.
5. The filling liquid is pulled and pushed by the sliding of the piston and
cylinder.
6. The filling machine can achieve high precision quantitative filling, filling
more than 1000ml of materials, the accuracy can reach ±0.5%.





Specifications:



Model GNC-4LY(choice 2,4)
Application bottle Round bottle,Square bottle,Flat bottle,etc
Measure precision ±0.5%(above 1000ml)
Filling capacity 50-500/100-1000/200-2000/500-5000ml
Production capacity ≤5000bottles/hour
Air pressure 0. 6-0. 8Mpa
Power source 380V, 50Hz
Total power 8. 0KW
Weight 1000Kg
Contour dimensions 2000x1300x2200 (mm)
