77kw 103hp 60KN Transmission Line Equipment With 7 Groove Number

Quick Detail

Model: GS60
Dimensions of the whole machine: 3800*2100*2300mm
Together with tension machine, this model allows for the tension stringing
of 220kV lines in mountainous and hilly areas and can be used for the
traction stringing of OPGW or ADSS cable in various terrains.



Configuration



Hydraulic dynamometer with set-point and automatic control of maximum pull.
Hydraulic oil cooling system

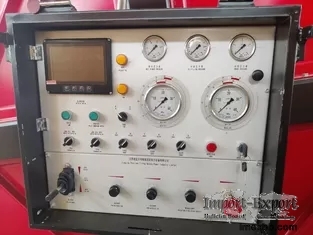

Control instruments for hydraulic system and diesel engine.
On board reel winder with automatic level wind, suitable for standard reel
mod.1100 and 1400
Hydraulic front stabilizer
Grounding connection point


Main configuration





Main pump: German Rexroth
Main motor speed reducer: German Rexroth
Tail bracket hoisting motor: America Eton
Hydraulic meter: German
Operating handle: German Rexroth


Parameter table



Model GS40 GS60 GS90 GS120 GS150 GS180 GS220
GS280 GS380
Max intermittent pull KN 40 60 90 120 150 180
220 280 380
Max continuous pull KN 30 50 80 100 120 150
180 250 350
Speed at max pull km/h 2.5 2.5 2.5 2.5 2.5 2.5
2.5 2.5 2.5
Max speed km/h 5 5 5 5 5 5 5
5 5
Pull at max speed KN 20 25 40 50 60 75
90 120 170
Diesel kw(hp) 77(103) 77(103) 118(158) 129(173) 129(173)
239(320) 239(320) 298(400) 440(590)
Cooling system Water Water Water Water Water Water
Water Water Water
Electrical system V 24 24 24 24 24 24
24 24 24
Bull-wheel diamete mm 400 450 540 600 600 700
760 960 960
Groove number 7 7 8 10 10 10 10
11 11
Max rope diameter mm 16 18 21 24 24 27
30 38 38
Max diameter of rope reel mm 1200 1400 1400 1400 1600
1400 1600 1600 1900
Total weight kg 3000 3500 4680 4800 5500 6800 6800
12800 13600
