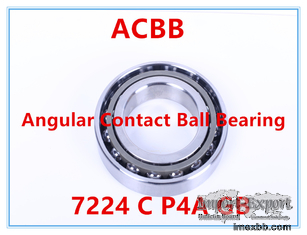

7224 C P4A GB Angular Contact Ball Bearing High Speed

Angular contact ball bearing 7224 C P4A GA (in addition, DB, DT, TBT, QBC and
other matching methods); The angles include C angle, ACD angle, A5 angle, E
angle, etc. It is mainly used in CNC machine tool spindles, high-speed motors
and high-speed electric spindles. The operating speed reaches 5000 to 5500 rpm.
Imported materials, imported G5 grade steel balls, and Kluberspeed NBU15 grease
are used, which have the advantages of high rigidity, high precision, high
speed, etc.





72 Series Angular Contact Ball Bearing
Bearing No Dimensions(mm) (KN) BasicRatedload (RPM)
Ball speed limit (RPM) Ceramic Ball limit speed (N) Preload
d D B Cr Cor Grease Lubrication Oil Lubrication
Grease Lubrication Oil Lubrication A B C
7222C 110 200 38 163.00 150.00 6700 10000 8500 14000
997 3139 6376
7222AC 110 200 38 153.00 143.00 6000 9000 7000 11000
1525 4939 10131
7224C 120 215 40 204.00 196.00 6000 9000 7500 12000
12690 3957 8038
7224AC 120 215 40 196.00 186.00 5300 8000 6300 9500
2003 6418 13107
7226C 130 230 40 212.00 216.00 5600 8500 7000 11000
1316 4108 8347
7226AC 130 230 40 204.00 204.00 5000 7500 6000 9000
2079 6671 13628




7224 C P4A GB Angular Contact Ball Bearing High Speed 0
7224 C P4A GB Angular Contact Ball Bearing High Speed
