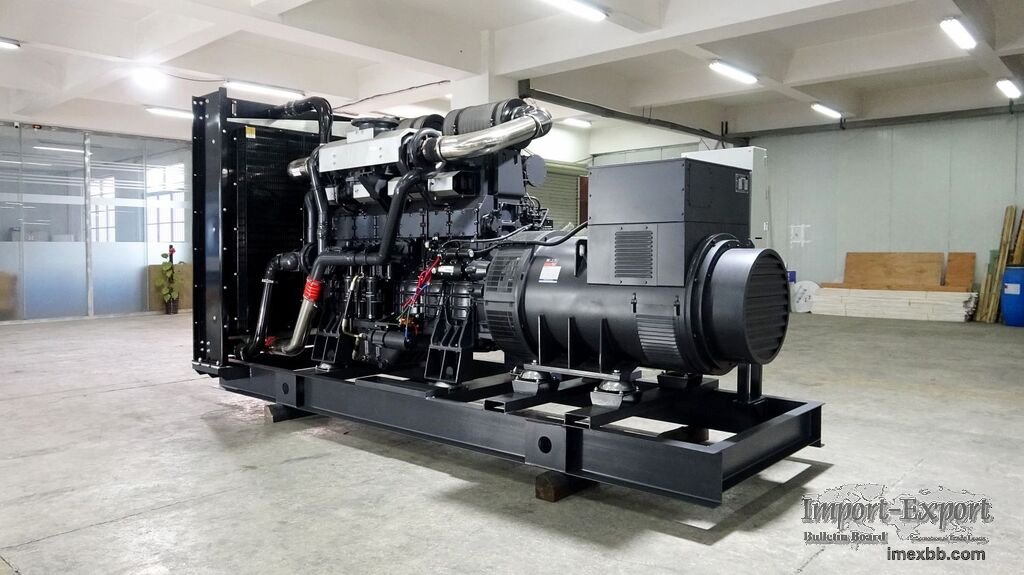

720kw 900kVA Hot Sales Commercial Diesel Generator Set

720KW 900KVA Diesel Generator Set Specifications
Genset model DB-720GF
Prime power 720kW
900kVA
Standby power 792kW
990kVA
Rated voltage(V) 400/230 (customizable)
Rate current(A) 1296A
Power factor 0.8
Frequency(Hz) 50
Speed(rpm) 1500
Phase: 3 phase 4 wire
Noise level: 105dB at 7m ( open type diesel genset)
75dB at 7m(silent type diesel genset)

Engine Specification
Manufacturer Shangchai
Model 6WTAA35-G32
Engine output-prime 818kW
Engine output-standby 900kW
Frequency: 50Hz
Speed: 1500rpm
Cylinders no. & Type: 6 cylinders, Inline,4 stroke, diesel engine, water-
cooled
Aspiration: Turbocharged Air to air intercooled
Bore*stroke 186*215mm
Displacement 35.1L
Compression Ratio 15:1
Governor Electronic speed governor
Starter motor voltage: 24V DC
Type Injection System: direct injection
Oil Capacity 100L-75L
Cooling way Water Radiator & fan
Engine Coolant capacity 78L

For more info, visit: https://www.dbdieselgenerator.com/

Minimum Order: 1 sets
