70J 0.4W Metal Oxide Varistor MOV 10D471K For Line-Line , Surge Protection

Product Description

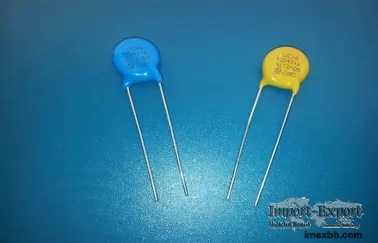

70J 0.4W Metal Oxide Varistor MOV 10D471K For Line-Line , Surge Protection
Varistor

Quick Detail:

ITEM VALUE
　Description Metal Oxide Varistor 10D471K
　Max. Vm(ac) 　300V
　Max. Vm(dc) 　385V
　Energy (2ms)(J) 70
　Rated Watt.(W) 　0.4W
　Max. Clamping V/A 　775V
　Varistor Volt.(VlmA) 　470Vdc
Weight 　1.35g/pc
• Wide voltage range selection - from 14 VRMS to 680 VRMS.This allows easy
selection of the correct component for the specific application.

• High energy absorption capability with respect to size of component.

• Response time of less than 20 ns, clamping the transient the instant it
occurs.

• Low stand-by power - virtually no current is used in the stand-by condition.

• Low capacitance values, making the varistors suitable for the protection of
digital switching circuitry.

• High body insulation - an ochre coating provides protection up to 2500 V,
preventing short circuits to

adjacent components or tracks.

• Available on tape with accurately defined dimensional tolerances, making the
varistors ideal for automatic

insertion.

• Approved to UL 1449 edition 3 (file number: E332800) and manufactured using
UL approved flame retardant materials.

• Completely non flammable, in accordance with IEC, even under severe loading
conditions.

• Non porous lacquer making the varistors safe for use in humid or toxic
environments. The lacquer is also resistant to cleaning solvents in accordance
with IEC 60068-2-45.

Description:

Varistors provide reliable and economical protection against high voltage
transients and surges which may be produced,for example, by lightning,
switching or electrical noise on AC or DC power lines. They have the advantage
over transient suppressor diodes in as much as they can absorb much higher
transient energies and can suppress positive and negative transients.When a
transient occurs, the varistor resistance changes from a very high stand-by
value to a very low conducting value. The transient is thus absorbed and
clamped to a safe level, protecting sensitive circuit components.Varistors are
manufactured from a non-homogeneous material, giving a rectifying action at the
contact points of two particles. Many series and parallel connections determine
the voltage rating and the current capability of the varistor

Applications:

Varistors may be used in many applications, including:

• Computers

• Timers

• Amplifiers

• Oscilloscopes

• Medical analysis equipment

• Street lighting

• Tuners

• Televisions

• Controllers

• Industrial power plants

• Telecommunications

• Automotive

• Gas and petrol appliances

• Electronic home appliances

• Relays

• Broadcasting

• Traffic facilities

• Electromagnetic valves

• Railway distribution/vehicles

• Agriculture

• Power supplies

• Line ground (earth protection)

• Microwave ovens

• Toys, etc.
