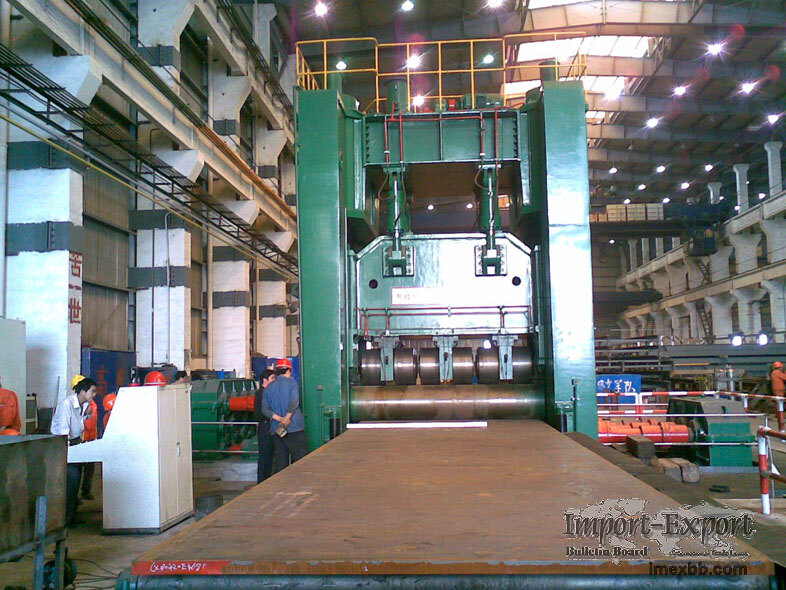

7 Rolls Levelling Machine

The CNC leveler is the first of its kind, and has been widely used in industry.
The metal sheet straightening machine has the characteristics of advanced
technology, high leveling accuracy, wide process range, high degree of
automation, and reliable and stable work under high strength. During the roll
leveling process, the metal plate After a series of alternating bending, the
precise control of the pressing amount of each leveling drum through the motor
and PLC control eliminates the internal stress and fundamentally solves the
different leveling effect caused by the different stresses in each part of the
sheet. Ideally, high-precision leveling is achieved.

Compared with other leveling methods, the control system of the plate leveling
machine has the functions of storing, recalling, and editing process and
equipment parameters, and has the function of identifying and early warning of
misoperation. When in use, on the operating table, the inlet and outlet
reductions can be set according to parameters such as plate thickness, plate
width, material strength, etc. or the existing parameters in the database, so
as to realize the electric adjustment of the work roll and the entry gap, and
it can be adjusted manually. And correction.


The Details Of EZHONG 7 Rolls Leveling Machine
- Optimal rational design.

- Use a large number of advanced manufacturing technologies to carry out
SOLIDWORKS full three-dimensional digital design, etc.

- Intelligent.

- Control method: PLC+touch screen+button, all working parameters can be set in
the man-machine interface, with parameter memory, storage, power-off memory
functions.

- Human-machine interconnection.

- The control system of the metal sheet straightening machine has the functions
of storing, recalling, editing process and equipment parameters. When using, it
can set the inlet and outlet reductions according to the parameters such as
plate thickness, plate width, material strength, etc., and realize automatic
adjustment.

- Automatic adjustment device for the opening of the metal sheet straightener.

- Before the plate enters the leveling machine, the plate thickness, width, and
material are measured by scanning the plate information processing unit, and
the signal is transmitted to the electrical control cabinet. The opening amount
calculation is automatically performed, and the opening amount of the metal
sheet straightener is adjusted. The value is confirmed after correction. Make
adjustments again.

High degree of automation, the system inputs parameters such as plate
thickness, plate width, strength, etc., and the numerical control system
automatically calculates the reduction amount to complete the adjustment of the
leveling reduction process parameters, which is convenient and fast leveling.

The whole metal sheet straightener adopts integral steel plate welding, which
is thick and beautiful, and has good stability.

Simple operation, single person can work independently.
The Application Of 7 Rolls Levelling Machine
The metal sheet straightener is widely used in industry. EZHONG leveling
machine has advanced technology, high leveling accuracy, wide process range,
high degree of automation, and good working reliability under high strength.
The application range of the metal sheet straightener involves aviation,
shipbuilding, metallurgy, and instrumentation. Stainless steel products, etc.,
play an important role in the verticality, parallelism, and appearance of
industrial structural parts.

If you want to know more types of roll forming machine second hand, please
visit our website.

Minimum Order: 1 sets
