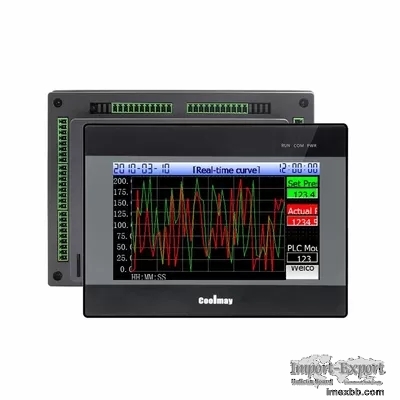

7 Inch Integrated HMI PLC Combo Servo Motor Controllers QM3G

PRODUCT DESCRIPTION
7 Inch Integrated HMI PLC Combo Servo Motor Controllers QM3G

HMI PLC Combo 7 Inch Programmable Touch Screen Monitor Integrated Servo Motor
Controllers



QM3G HMI PLC combo series are powerful programmable controllers with incredible HMI
features, backed by the most efficient programming software mView. It is superbly
compact, 4.3", 5″, 7” or 10.1″ are highly compact controllers, where the PLC,
HMI, and I/Os are built into a single unit and in a range of built-in I/O
configurations.







Features

Built-in, high-quality 4.3", 5″, 7” or 10.1″ HMI touch panel

Powerful PLC: 32,000 steps program, support PID automation

Built-in COM ports: RS232, RS485, USB type C, Ethernet (optional)

Support high-speed counting, high-speed pulse, communication port integrated

Support arc and linear interpolation



Specifications



Model

QM3G-70FH-44MT-4P4P0-485P
,
Display

Dimension

200*146*36mm

Cutout size

192*138mm

Power Consumption

6-7W

Feature

60K- , color resistive touch screen, supports portrait display

Memory

RAM

64MB

ROM

NOR Flash 16MB

CPU

32bit CPU 408MHz

I/O

DI/DO

24DI/20DO, transistor outputs, NPN input

High-speed function

High-speed counting

Single phase 6 channel 60KHz

High-speed pulse

8 channels, Y0-Y3 is 100KHz, Y4-Y7 is 10KHz.

Connection

HMI

Type-C HMI download port (can download PLC program through the USB penetrating
function), RS232 port

PLC

1 TYPE-C, 1 RS232 (program port), 1 RS485 communication port

Software

HMI

Coolmay mView HMI Programming Software

PLC

Compatible with Mitsubishi GX Developer 8.86 and WORKS 2
