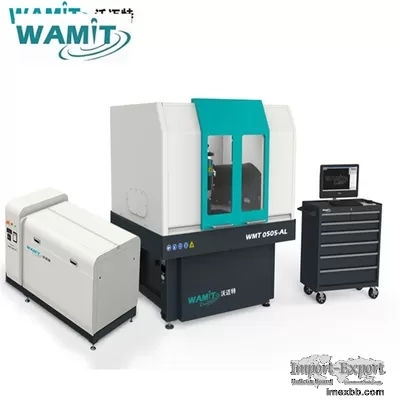

7.5kw 30000psi Table Top Water Jet Cutting Machine

PRODUCT DESCRIPTION
laboratory use 7.5 kw 30000 psi small table top water jet cutting machine with
cover water jet cutter



Our water jet cutter specification:



Model WMT0505-AL
Video outgoing-insp Provided
Marketing Type: New Product
Voltage: 220V/380V/415V
Dimension(L*W*H) 500*500mm
Year: NEWEST
Continuous Working 350-380mpa
Power Requirement (415v/50hz), 380V/50HZ, ( 220v/60hz), 3 phrase
Rated Power 7.5kw


Our water jet machine description:



The gantry-style balanced design structure is more stable and improves the accuracy
of the machine. Ultra-high pressure cutter head, which can be cut with pure water
and sand. It has 3-axis and 5-axis cutter heads for vertical and non-vertical
cutting with a maximum cutting angle of 60 degrees. The X/Y axis adopts the
labyrinth waterproof and sandproof double protection system. The X/Y axis adopts
Taiwan's high-quality guide rail and Swedish ball screw. It is durable and the Z-
axis fully enclosed structure is guaranteed to be free from water and sand. Heavy-
duty machine tools, high-temperature forging, so that the machine will not be
deformed during use. China's first generation of self-designed ultra-high pressure
servo direct drive pumps are more energy efficient, environmentally friendly and
light, and ultra high pressure booster pumps are easier to operate and maintain.
The CNC control system uses the WEIHONG professional waterjet cutting CNC system.
We also have ITALY imported software which support more than 20 languages.



Our water jet cutter more advantages:



1. Automatic lubrication system from the Valley of Japan.



2. The internal components are selected from Schneider International brand, with
first-class quality and reliable work.



3. Way of drive : Servo ( drives and motors are from Japan YASKAWA ). 4 servo
driver, Y axis is with 700w driver, X axis is with 400w driver.



4. High precision, Ensure cutting results.



5. Provide customizable services.



Our water jet cutter control system:



7.5kw 30000psi Table Top Water Jet Cutting Machine 0
7.5kw 30000psi Table Top Water Jet Cutting Machine
Enlarge Click to Enlarge
