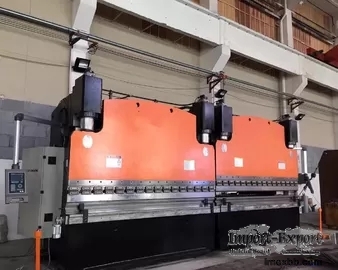

7.5kw 2500mm Multi-Axis CNC Hydraulic Press Brake 100t For Steel Tower / Tr

7.5kw 2500mm Multi-Axis CNC Hydraulic Press Brake 100t For Steel Tower / Truck
Carriage





Quick Detail:





Name Product other names Brand Name CMC
CNC Hydraulic Press Brake Machine
Bending Machine

Press Brake

Feature It can control over 3 axis, max 11 axis, multi-steps automatic running
Advantage Back gauge is driven by servo motor, adopted ball-screw and
linear guide way, it could make sure positioning accuracy Controller
system
We give customer several options: Netherlands brand: Delem DA-52

DA-56

DA-66T







Application:



CNC press brake machine is widely used in large steel structure, steel tower,
truck carriage, electric cabinet, decoration industrial....







Description:



1) With stylish design, high rigidity, high speed

2) Electro-hydraulic servo system, closed loop control system controls accuracy

3) Worktable adopts hydraulic deflection compensation to ensure the accuracy of
the workpiece

4)Back gauge is driven by servo motor, adopted ball-screw and linear guide way,
it could make sure positioning accuracy









Specifications





TECHNICAL FEATURES
1 Type Hydraulic CNC electro-hydraulic synchro
2 Model WE67K-100/3200 WE67K-100/4000
2 Working force 100 T 100T
3 Length of table 3200 mm 4000mm
4 distance between frames 2650 mm 3100mm
5 Throat depth 320 mm 320mm
6 Open height 475 mm 475mm
7 Stroke 200mm 200mm
8 Strokes 10min-1 10min-1
9 Main motor 7.5kw 7.5kw
10 CNC system
Option: DA52, DA56,DA66T

Delem Co., Netherlands

Axis: 3 Axis(Y1,Y2,X)

+Automatic hydraulic compensation system

4 Axis(Y1,Y2,X,R)+compensation

or more axis

11 Tool With 1 punching and 1 bottom die
12 Main Electric Elements in cabinet Schneider
13 Seal in the cylinders NOK, made in Japan
14 Hydraulic components BOSCH , Germany
15 Linear Raster displayer sensor
HEIDENHAIN , GERMANY
16 Gross weight 8700 kg 11000kg
17 Overall sizes(mm) LxWxH 3450x1955x2565 4250x1955x2855
18 Packing:
With plastic cover



With plastic cover












Communication with customers



A: what is difference during DA-52, DA-56, DA-65W and DA66T?



About CNC press brake machines, usually, we suggest four kinds of controller
system more often: Delem DA-52, DA-56, DA-65W, DA66T Following is their
characters:

DA-52 control system:

With LCD true-color display
Max control 4 axis(Y1,Y2 and two auxiliary axis)
worktable crowning compensation control
tooling, material and product library
USB interface
Advanced Y axle control algorithm, it can control closed loop, also open loop


DA-56 control system:

With LCD true-color display
2D programming
Bending process
Developed length calculation
worktable deflection compensation control
tooling, material and product library
USB interface
Servo control, frequency control and AC motor control




DA65W controller system:

Modular structure, max 20 axis
Built-in PLC reduces machine circuit design, let the machine more stable
Processing automatic calculation and optimization
self diagnosis function supply diagnosis for the whole system and components
function
multi-language selection
3.5" floppy drive and RS232 interface, program and parameter can realize
external storage, online and offline programming.
2 D graphics mode programming, adopts different gray scale to display
processing workpiece, tooling.
It can works 2500 program, 90 tooling.
Calculate clamping point, tool safe area, bending force, unloading distance and
worktable compensation.


DA66T controller system:

Error message prompting system and help text. It can supply timely warning for
your error programming and wrong operation, which save much time that looking
for error.
Standard Ethernet interface, connect windows
real-time windows system, multi-task treatment and file management
USB interface, connect external device: mouse and fingerboard
Colorful display: 12 inch
TFT 2D graphics mode programming
Automatic bending processing
PLC function
operation warning system




A: If it is difficult to operate controller system?

B: First, these systems are not difficult, easy in fact. If the workers in the
factory have experience of operation NC machines, then our system is easy for
them to study, when we send machines, we will give controller system manual. If
the factory feels it is hard, then they can send one engineer to our side, we
will give him some training in our factory.





A: Please indicate press brake warranty terms

Warranty:

Warranty time : one year from finishing commissioning date.

Deatail Warranty :

1. Long distance Technical supporting, free forever.

Any questions, problem on machine, on process help. We can give solution and
information to customer by email, skype, video , phone .

2. In the warranty time, If due to machine quality reason , some parts broken ,
we will supply the parts , parts is free for customer , shipping cost is free
for customer.

3. After the warranty time, If needs some machine parts, we also supply the
parts with basic cost only.

4. If need our engineer to come, we will arrange, but customer will pay for
Visa, air ticket, hotel, food cost, and salary.
