7.5KW 16A AC Servo Drive High Power Servo Motor Drive

Product Description

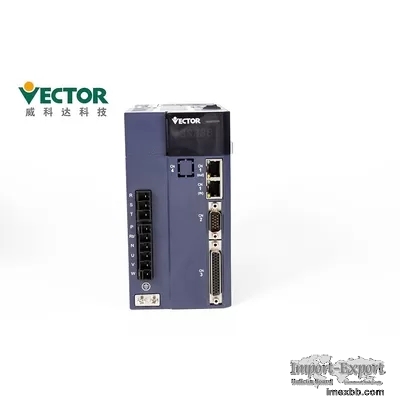

7.5KW High Power Servo Motor Drive Fast Response Programmable AC Servo Drive
17/23,24Bit

Vector Tech. Focus on Servo system for more than 17 years.

More Flexible, More Accurate

Servo Drive

Power Covers 200W-110KW

Single/Three Phase 220V/380V

Modbus / CanOpen / EtherCAT

Location, Speed and Torque Control Mode

2500 line incremental + Hall encoder; 2500 line incremental; 17/23 bit Tamagawa
absolute encoder;
24 bit Nikon absolute encoder



Products Description



Products AC Servo Drive
Brand Vector
Model No. VEC-VC-01633H-M-E
Power 7.5KW
Voltage 380V
Phase Three Phase
Rated Current 16A
Communication Protocols Modbus/CANopen/EtherCAT
Encoder 2500 line incremental + Hall encoder; 2500 line incremental; 17/23 bit
Tamagawa absolute encoder;
24 bit Nikon absolute encoder


How is the Servo Drive works? The Location control model, Speed control model and
Trogue control model.

Voltage Control Mode Single-phase / three-phase full-controlled rectification
SVPWM modulation
Encoder Encoder Feedback 2500 pulse incremental + Hall encoder;
2500 pulse incremental;
17bit Tamagawa absolute encoder;
23bit Tamagawa absolute encoder;
24bit Nikon absolute encoder;
Pulse Command Input Pulse Type Differential input,Open collector
Frequency Range Differential input:0-500kHz,pulse width greater than 1us
Open collector: 0-300kHz,pulse width greater than 2.5us
Pulse Mode pulse + direction; AB pluses; CW+CCW;
Analog Input Voltage Range -10V to 10V
Input Impedance 10kΩ
Maximum Frequency 1.5kHz
DI/DO Interface Type NPN/PNP
Communication Modbus/CANopen/EtherCAT




Position Mode Command Input Method Pulse Command
Internal Planning Position
> Plan by target position, speed, acceleration and deceleration
time
> Trapezoidal speed curve
> Cubic speed curve
> Absolute / relative command mode
Instruction Smoothing Mode Low Pass Filtering / Median Filtering
Electronic Gear Ratio N/M;(M=1~2147483647,N=1~2147483647)
Torque Limit Internal Torque Limit / Analog Torque Limit
Feedforward Compensation Speed Feedforward / Torque Feedforward
Torque Compensation Fixed Torque Compensation / Analog Torque Compensation /
Automatic Torque Compensation;
Speed Contol Mode Command Input Type Pulse Frequency / Analog / Internal
Planning Speed
Speed Control Range 1~max speed
Bandwidth 1kHz
Torque Limit Internal Torque Limit / Analog Torque Limit
Instruction Smoothing Mode Low Pass Filtering / Median Filtering
Feedforward Compensation Torque feedforward
Torque Compensation Fixed Torque Compensation / Analog Torque Compensation /
Automatic Torque Compensation;
Torque Control Mode Command Input Type Internal Torque Reference / Analog
Control Torque
Torque Compensation Fixed Torque Compensation / Analog Torque Compensation /
Automatic Torque Compensation;
Speed Limit Internal Speed Limit / Analog Speed Limit

Click to Enlarge
