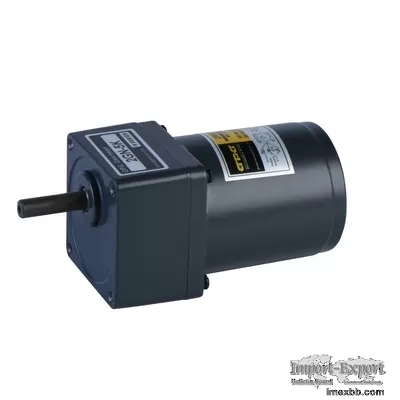

60mm 6W 2RK6GN-C 2GN3-200K CONSTANT SPEED GEARBOX ELECTRICAL YN60-6 60JB3-2

Specification of motor 6W 60mm Fixed speed AC gear motor
TYPE Gear tooth Output Shaft
Power

(W)

Frequency

(Hz)< , br>
Voltage

(V)

Current

(A , )

Start Torque

(g.cm)

Rated Start Gearbox type
Torque

(g.cm)

Speed

( , rpm)

Capacity

(μF)

Resistanc , e Voltage

(V)

Bearing gearbox
Reversible Motor 2RK6GN-C 6 50 220 0.12 600
487 1200 0.8 500 2GN-K
6 60 220 0.11 500 400 1450 0.7 500 2GN-
K


Drawing is for standard screw hole, If need through hole, terminal box, or
electronic magnet brake, need to tell the seller.

Drawing: 2RK6GN-C/2GN3~20K (Short gearbox shell 32mm)

60mm 6W 2RK6GN-C 2GN3-200K CONSTANT SPEED GEARBOX ELECTRICAL YN60-6 60JB3-
200G8L AC GEAR MOTOR 0

Drawing: 2RK6GN-C/2GN25~180K (High gearbox shell 40mm)

60mm 6W 2RK6GN-C 2GN3-200K CONSTANT SPEED GEARBOX ELECTRICAL YN60-6 60JB3-
200G8L AC GEAR MOTOR 1



Gearbox torque table(Kg.cm)
(kg.cm×9.8÷100)=N.m
Output speed :RPM 500 300 200 150 120 100 75
60 50 30 20 15 10 7.5 6 5
Speed ratio 50Hz 3 5 7.5 10 12.5 15 20
25 30 50 75 100 150 200 250 300
60Hz 3.6 6 9 15 18 30 36
60 90 120 180 300 360
Allowed

torque

4W kg.cm 0.66 1.1 1.7 2.2 2.7 3.3 4.4 5.4
6.5 10.7 15 20 25 25 25 25
6W kg.cm 1.0 1.6 2.5 3.3 4.1 5 6.6 8.1
9.7 16 23 25 25 25 25 25
10W kg.cm 1.7 2.7 4.2 5.5 6.8 8.3 11 13.5
16 25 25 25 25 25 25 25
Note: Speed figures are based on synchronous speed, The actual output speed,
under rated torque conditions, is about 10-20% less than synchronous speed,
a gray background indicates output shaft of geared motor rotates in the same
direction as output shaft of motor. A white background indicates rotates
rotation in the opposite direction.




Basic tech data: Retail price:20-30$
Motor type: AC gear motor Insulation Class: E
Motor material: Aluminum , Copper, Steel Ratio range: 1:3-300
Rotation: CW/CCW reversible Working style:S1
Frequency: 50Hz/60Hz Operating temperature range: -10 °C～+40°C
HS Code:850140 Operating relative humidity: 95% Below
Connection Diagram:

60mm 6W 2RK6GN-C 2GN3-200K CONSTANT SPEED GEARBOX ELECTRICAL YN60-6 60JB3-
200G8L AC GEAR MOTOR 2
