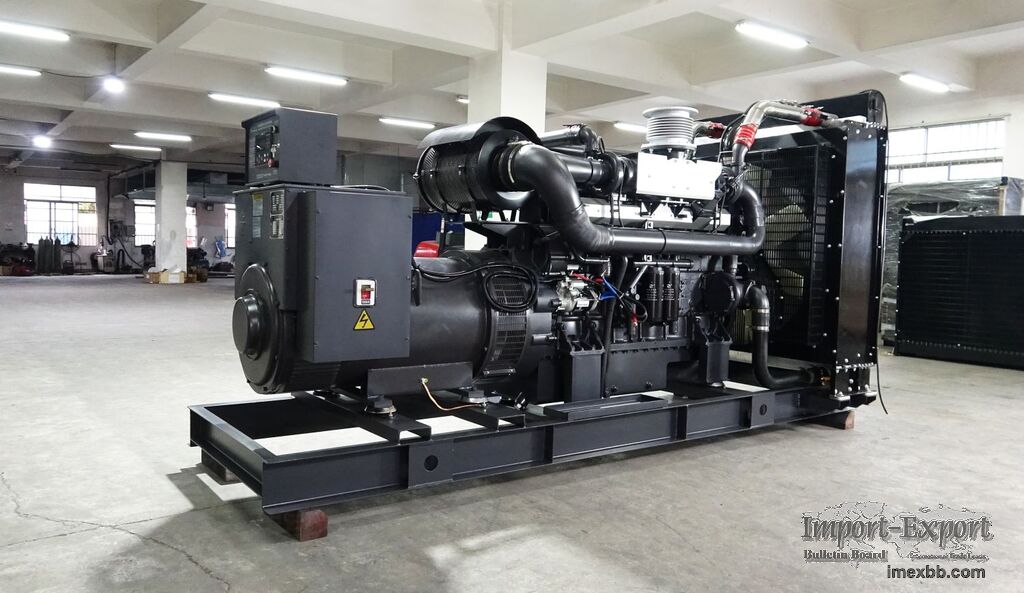

600kw 750kVA Prime Power Diesel Genset with Engine Shangchai

600KW 750KVA Diesel Generator Set Specifications
Genset model DB-600GF
Prime power 600kW 750kVA
Standby power 660kW 725kVA
Rated voltage(V) 400/230 (customizable)
Rate current(A) 1080A
Power factor 0.8
Frequency(Hz) 50
Speed(rpm) 1500
Phase: 3 phase 4 wire
Noise level: 105dB at 7m ( open type diesel genset)
75dB at 7m(silent type diesel genset)

Engine Specification
Manufacturer Shangchai
Model SC33W990D2
Engine output-prime 660kW
Engine output-standby 726kW
Frequency: 50Hz
Speed: 1500rpm
Cylinders no. & Type: 6 cylinders, V line,4 stroke, diesel engine, water-
cooled
Aspiration: Turbocharged Air to air intercooled
Bore*stroke 180*215mm
Displacement 32.8L
Compression Ratio 15:1
Governor Electronic speed governor
Starter motor voltage: 24V DC
Type Injection System: direct injection
Oil Capacity 75L-50L
Cooling way Water Radiator & fan
Engine Coolant capacity 56L

For more info, visit: https://www.dbdieselgenerator.com/

Minimum Order: 1 sets
