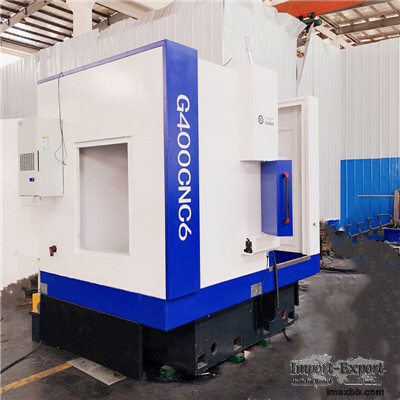

6-axis CNC G400 Hobbing Machine for Cutting Gear Dia 400mm Modules 5m

Hobbing Machine Manufacturer

PRODUCT DESCRIPTION
CNC G400 Hobbing Machine for cutting gear Dia 400mm Modules 5m

Technical Data:
The largest machining diameter 400mm
The largest processing modules 5m
The largest diameter cutter 120mm
The Cutter Arbor specifications 27/32
The Cutting Degree ±45 °

G Series High Speed Direct Drive CNC Gear Hobbing Machine
G150 G200 G250 G300 G400 G500 G600 gear hobbing machine
With Siemens or FANUC CNC Control

MACHINE CHARACTERISTICS
G series are High Speed Direct Drive CNC Hobbing Machine. Mainly include G120,
G150, G200, G320 , G400, G500 models. This series of high-speed CNC hobbing
machine is designed as direct drive machine. Direct Driving Hob Spindle and
Workbench with German Siemens High Power Direct Drive Motor.
1, Compared with YK series, The advantages of this series are higher rigidity,
higher cutting force, Higher accuracy and stability and Extremely maintenance
free of B and C axis maximum.
2, This series can machining 0.3-6 models cylindrical spur, helical gears, drum
gear and small taper gear. Also can machining spline, synchronous pulley,
sprocket wheel, worm gear and various non-standard gears.
3, Equipped with special options, two knife and finishing machine can realize
gear scraping function, eliminating the hard tooth surface gear grinding
process which saves the processing cost.
4, Direct drive spindle has been specially processed and accurately debugged to
achieve excellent efficiency ratio. Equipped with oil cooling system to solve
the heat problem of spindle.
5, Automatic feeding and unloading device can be selected to achieve higher
automation production, improve productivity, greatly reduce production costs
and professional and technical requirements for operators.
6, Wet-cut cooling or air-cooled Micro-lubrication cooling can be selected to
meet the requirements of various processing schemes of users.
7, Unique machine tool structure design makes the machine tool has a high
overall rigidity, can withstand heavy cutting and secondary hard scraping.
8, Tool spindle has the function of automatic tightening and loosening of tool
rod, which improves the operation convenience.
9, Using high strength castings and double wall structure design to enhance the
processing stability and rigidity of machine tools
10, Friendly nc interface makes the machine easy to operate, operator training
to operation of machine tools by simple days.
