5x10-4Pa high vacuum induction melting furnace with φ20mm x 50mm die

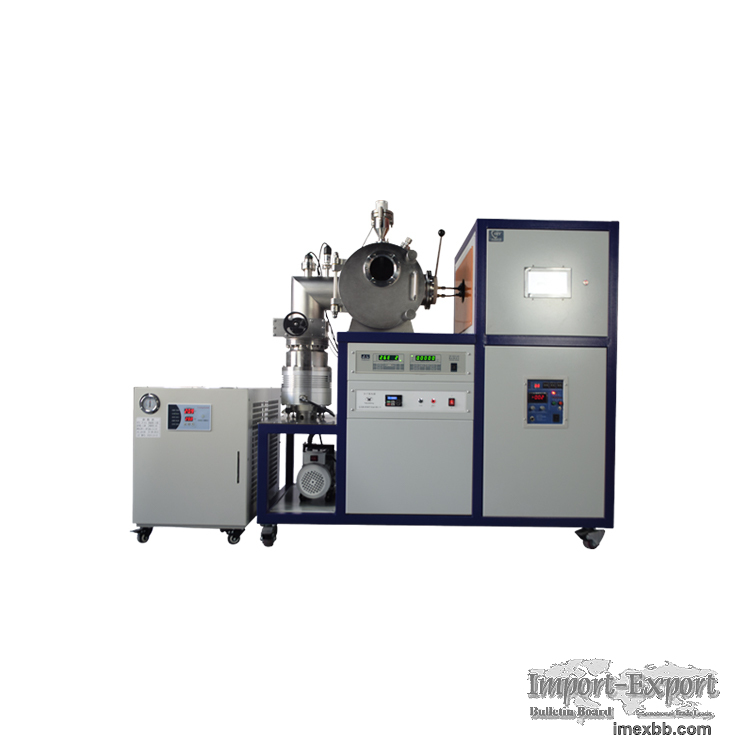

High vacuum induction melting furnace CY-IM325S-G25
1. Overview
This product is a vacuum induction furnace, using induction heating, the equipment
melting temperature can reach 2000 ℃. It adopts stainless steel chamber and water-
cooled die, equipped with a quartz observation window to observe the smelting
situation of the sample, which is suitable for the smelting and heat treatment of
metal samples, and the phase diagram study. The equipment uses high-quality high-
frequency induction power supply with a maximum power of 25KW. The equipment adopts
infrared temperature measurement, intelligent temperature controller for
temperature control, with over-temperature protection function, which can
accurately control the melting temperature.
The equipment is equipped with a high-vacuum molecular pump set, which has the
advantages of high vacuum, high cleanliness, and fast gas pumping speed, which can
effectively improve the melting quality. The equipment is also equipped with a
lifting platform and a flip handle, which is convenient for the operator to perform
casting and sampling operations after melting. The equipment is also equipped with
a pouring device, which can pour the smelted sample into a pre-prepared mold to
produce the required sample shape.
The equipment has comprehensive functions, fast melting, convenient use, energy
saving and environmental protection, and is very suitable for metal sample research
in the laboratory.

2. Technical Parameters
Model: CY-IM325S-G25
Power requirements Voltage: Three-phase 380V Power: 25KW (European standard)

Vacuum chamber
Material: 304 stainless steel
Structure: cylinder horizontal front door open
Size: φ325mm x H330mm
Quartz observation window: φ100mm
The upper cover is equipped with a feed port

Casting system
The right side of the chamber is equipped with a pouring device, which can be cast
after melting
Pouring mold size: φ20mm x 50mm
Mold type: water-cooled copper mold

Vacuum system
Backing pump: Two stage rotary vane pump, pumping speed 1.1L/s
Secondary pump: turbo molecular pump
Ultimate vacuum: 5x10-4Pa

Temperature control system
Intelligent temperature control meter temperature control
With over-temperature protection
Temperature measurement: infrared optical temperature sensor, the maximum
measurement temperature is 2100℃

Induction coil: inner diameter 60mm, height 80mm
Intake port: φ10 Pagoda Head
Gas release valve: Manual gas release valve
Cooling system: Integrated water-cooling pipeline design, φ12mm quick plug
connector
Water chiller: Refrigeration type water chiller, cooling capacity 2.8kW,Flow 3m3/h
Dimensions: 1440x700x1240(mm)

Minimum Order: 1 sets
