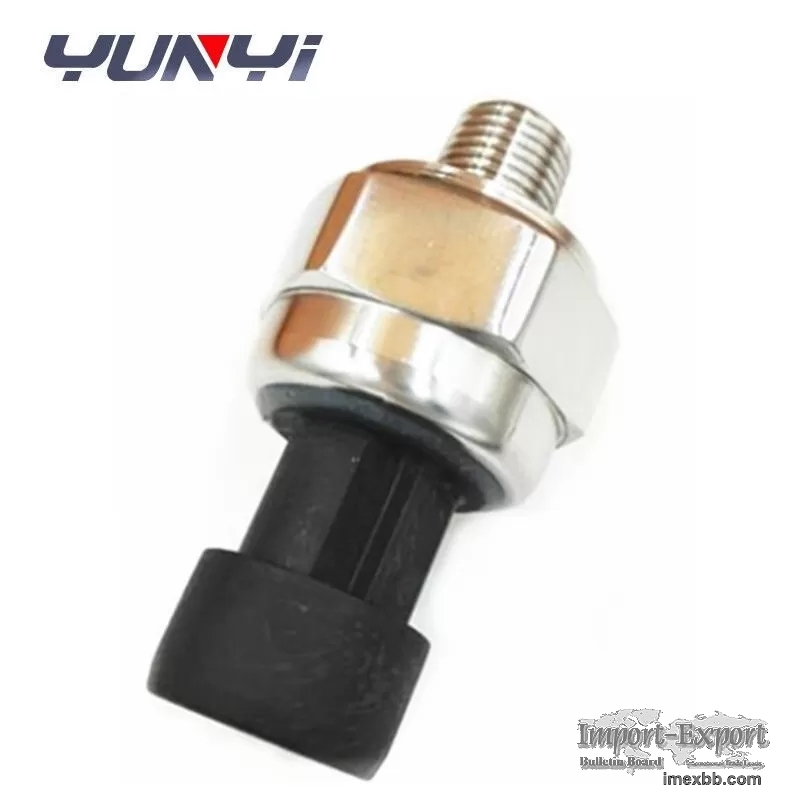

5V Smart Water Pressure Sensor , MEMS Mini Pressure Transmitter

YD 35 Series Mini Pressure Transmitter Smart Water Pressure Sensor



This transmitters use MEMS micro machining components, fully sealed structure has
the good protection grade, ensures that it can adapt to various working conditions.
The compact case is also made of stainless steel and is available with
environmental protection ratingsup to IP 65.

YD 35 Series Mini Pressure Transmitter Smart Water Pressure Sensor Applications
Automobile, compressor and refrigeration Industry
Engineering machinery
pressure control and monitor
Energy and water treatment system
Armarium, agricultural machinery
Hydraulic and pneumatic control system
Iron and steel industry, light industry
Pump, fitness equipment, household appliances

Materials Gas or liquid compatible with ceramic
O-ring NBR (FKM or EPDM)
Signal output 0.5-4.5V / 1-5V / 0-5V , 3-wire; 0-10V, 3-wire; 4-20mA, 2-wire;
Power supply
5V with signal output 0.5-4.5V / 1-5V / 0-5V, 12...32V with signal output 0...10V,

9...32V with signal output 4...20mA

Response time (10 ... 90 %) ≤2ms
Isolation voltage DC 500V
Accuracy
≤ 1 % F.S @25℃ (Includes linearity, hysteresis and repeatability.)

≤3% F.S@ {-40~125℃} (limit point calibration)

1-year stability ≤ 0.05 % F.S
Permissible temperature of
Medium -20...+125℃
Ambient -40...+100℃
Storage -40...+100℃
Compensated temperature range -20...125℃
Mean TC of zero
typical:0.03%F.S/℃；

maximal:0.05%F. , S/℃

Mean TC of range
typical:0.03%F.S/℃；

maximal:0.1%F.S , /℃

CE - conformity
Test Standard
EN 55022:2010/AC:2011 EN 61000-3-2:2014

EN 61000-3-3:2013

EN 55024:2010

EMC directive 2014/30/EU
Shock resistance 1000g according to IEC 60068-2-27 (mechanical shock)
Vibration resistance 20g according to IEC 60068-2-6 (vibration under resonance)
Wiring protection Protected against reverse polarity, overvoltage and short
circuit
Weight 70g
Connection G1/4 (NPT1/4, G1/4 and others available)
