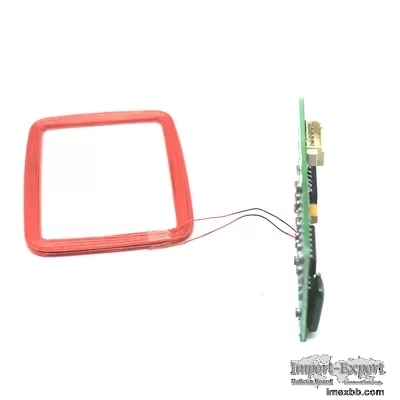

5V RF Low Frequency 125khz RFID Reader Module Embedded RFID Reader 125KHz

5V RF Low Frequency TTL Level ID Card EM RFID Reader Board RFID 125khz
Reader Module



Suoma is a cutting-edge enterprise with an in-house R&D team. Our core
technical and sales staff are seasoned professionals with over a decade of
experience in the RFID industry.

At Suoma, we specialize in RFID embedded modules. Through extensive research
and development, we have developed a diverse range of RFID modules that
cater to various products and projects. Whether you require the most
advanced solution, the highest quality, or the most cost-effective option,
we offer a variety of levels and choices to meet your specific needs.

Our standard module offerings include the 125kHz low frequency series, the
13.56MHz high frequency series, and the 860-960MHz UHF series.



Instruction:

IS610 is a 125KHz read-only module for EM4100/TK4100 125KHz cards, which can
read and output CSN card number.

It has option of Wiegand26, RS232 and TTL output format.



Features:

125KHz Operating Frequency

Available to be embedded into individual items

Read CSN card number only

Different output formats



Module NO.:

Module NO. Interface
IS610-W WG26
IS610-T TTL
IS610-S RS232


Parameter:

IS610
Frequency 125KHz
Supporting Card EM4100/TK4200/EM4200 Card
Interface Wiegand26, TTL, RS232
Power Supply 5V & 3.3V
Card Reading Distance >8cm(Depending on label size and surroundings)
Operating Temperature -10℃~ 70℃
Antenna External , Variety of optional specifications
Dimension 39mm *19mm * 9mm


PIN Definition:

PIN PIN NO. Wiegand26 RS232/TTL
P1 1 NC NC
2 DATA 0 RXD
3 DATA 1 TXD
4 GND GND
5 +5VDC +5VDC
P2 1 ANTENNA-1 ANT-1
2 ANTENNA-2 ANT-2
P3 1 LED- LED-
2 LED+ LED+
3 NC NC
PIN Definition Diagram:

5V RF Low Frequency 125khz RFID Reader Module Embedded RFID Reader 125KHz 0

Popular antenna size options:(customizable)



5V RF Low Frequency 125khz RFID Reader Module Embedded RFID Reader 125KHz 1



Application:

Table PC

Lift control

POS terminal

Parking system

Access control

Handheld terminal

Attendance application

Recreational Machine

Barrier gate/rapid-open gate

5V RF Low Frequency 125khz RFID Reader Module Embedded RFID Reader 125KHz 2

5V RF Low Frequency 125khz RFID Reader Module Embedded RFID Reader 125KHz 3
