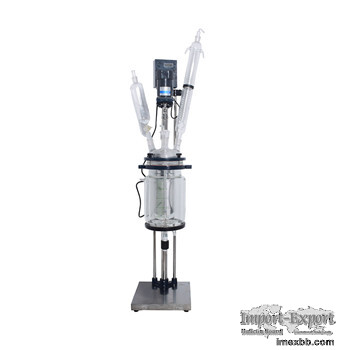

5L Jacketed Glass Reactor 5l Reactor

Cheap Jacketed Laboratory Reactor

Model: WKS-5
Type: Lab scale
Brand: labsnova
Power Supply: 110-120V/50-60Hz or 220-230V/50Hz
Shipping: in stock
Warranty: 1 Year

Product Description
I. Brief introduction
The LABSNOVA Jacketed Glass Reactors are mainly used for synthetic reaction,
crystallization and concentration of different types of materials in a
controlled temperature and vacuum environment.  It finds a multitude of uses
in the chemical, pharmaceutical, and biotechnology industries, in research and
development, in manufacturing and quality assurance, in laboratories, and in
plant construction. We manufacture Glass Reactors from laboratory scale 1-5L
to pilot prodution scale 10-200L. Support customization, provide TURNKEY
SYSTEMS solution.

LABSNOVA manufacture single layer, double layer and three layers glass
reactors. Each reactor features adjustable stirring speeds and a constant
pressure feeding funnel that allows you to add material to the vessel at a
uniform and controlled speed. The built-in condenser makes it possible to
recover some materials, also at a controlled rate of speed. Condenser helps to
recover some materials distillated during reaction. Circulating liquid can be
filled into the jacket to heat or cool materials inside. Three layers glass
reactor with two jackets, the inner jacket is for circulating liquid, and the
outer layer should be pumped to vacuum condition for thermal insulation.

Jacketed Glass Reactors (double layer) WKS-5 can be made into system devices
with Circulating Water Vacuum Pump, Diaphragm Vacuum Pump, Circulating Chiller,
heater chiller.
