5G WIFI Wireless Conference Processor

5G WIFI Wireless Conference Processor

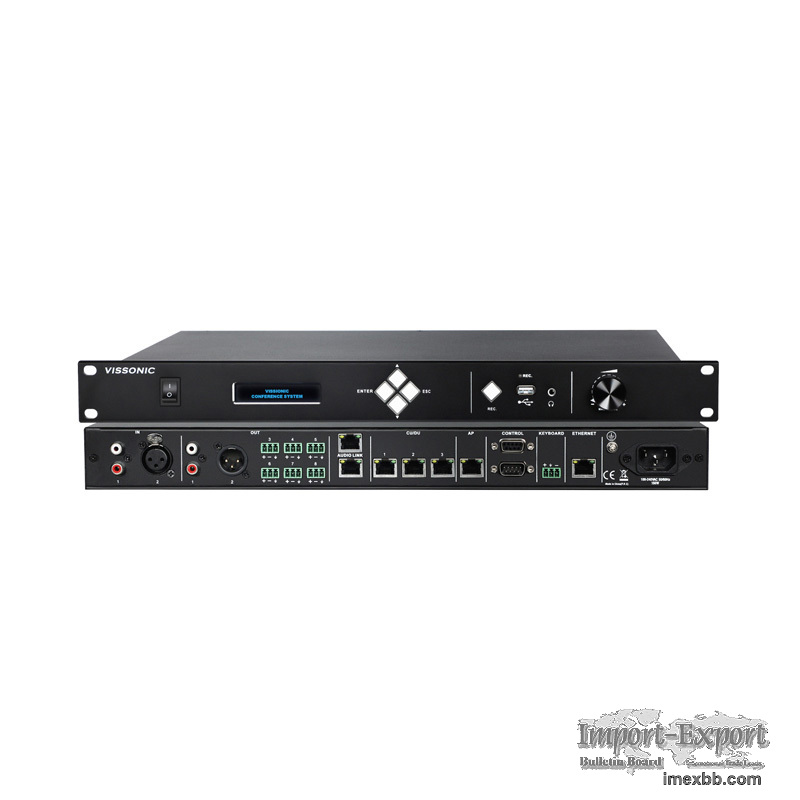

VIS-DCP2000-W　
Discussion
Vot , ing
64 Channels Interpretation
AUDIO link Digital input/output
Audio analog input
MIC group outputs
TCP/IP software control port

Overview
New Generation Full Digital Wi-Fi Wireless Conference System, Instantly
Setup, leave more time for inspiring minds CLEACON Digital Conference system
VISSONIC CLEACON, make wireless come true
The major pain point on traditional meeting room is to connect all devices by
cable, which is complex and wasting of time. VISSONIC Wireless conference
system, start the meeting in anytime, anywhere, increase the efficiency on
planning.
Standard Wi-Fi technology to co-work perfectly with existing networks
CLEACON wireless unit, choose the frequency point from dozens of available
ones on our access point, working in zero interference with all other networks
in the area.
Elegant arc-shaped surface design
Arc-shaped glass operation area is dust/water-proof, and there is no
noise/damage risk compare with common physical buttons, anti-scratch cover
technology, it remains smooth glass surface even after thousands times of touch

Features
● The unique AUDIO-LINK digital ring network technology achieve full-digital
signal transmission and processing
● One CAT5e cable to transmit up 64 channels audio and other signals.
● All microphone units support audio, ID independent output. Working with
voice recognition system to achieve voice role separation.
● High-fidelity sound quality by lossless audio transmission technology, 48K
audio sampling rate and 20Hz ~ 20KHz frequency response
● A single conference controller can realize the independent control and
merging of 4 conference rooms, can handle the cascade of multiple conference
controllers to realize the merging and separation of larger conference rooms
(Optional).
● "Hand-in-Hand-Loop-Ne , twork" connection makes the system always working
perfectly no matter changing discussion unit or having any malfunctioned units
● The sensitivity of the unit microphone and 8 segment equalizer EQ adjusted
independently.
● Conference controller can output 16 segment equalized EQ to achieve sound
field adjustment; pressure limit, which can recognize the noise gate passed by
human voice. AGC automatic volume gain control; AFC automatic feedback
suppression and auto-mix technology.
● Sound output by separated zones function, each zone is automatically
adjusted according to the volume of the position of the microphone, achieve
longer distances pickup without whistle.
● Echo cancellation, remote two-way real-time call with another conference
controller or another third-party video conferencing terminal.
● USB recording, controller monitor, advanced noise cancellation technology
to realize clearer recording.
● System date, time management, and support count-down speech.
● Optional DANTE output module with other DANTE equipment used.
● Can drive 2x120W POE speaker, through extension main unit, support up to 16
POE speakers.

Functions
● Compliance with IEC 60914, GBT 15381-94
● Connect with VIS-EXM full-digital extension main unit, it can expand to
5200 discussion units
● "Hand-in-Hand-Loop-Network" , ; connection and the system assigned to each unit
independently ID to avoid ID conflict.
● Both wired/wireless discussion units can connect to the controller, fast
and easily to adding delegate of meetings.
● Up to 8 wireless microphones to be turned on at the same time, adaptive
avoiding interference technology to achieve stronger anti-interference ability,
compliance with IEEE 802.11n standard Wi-Fi both for 2.4GHz and 5GHz.
● 2 channel audio input, XLR or RCA type, for local audio input or remote
video-conferencing input.
● Maximum 8-channel audio output, XLR, RCA or Phoenix type, can be connected
to simultaneous interpretation output or partitioned output.
● Add the audio input box, the system can be connected to other condenser
microphones or dynamic microphones, more choices for users.
● Built-in multi-way internal communication function.
● TCP/IP connection between controller and PC
● RS232 central control, realize microphone switch, priority, volume and
other controls.
● RS232 or RS485 to send the PELCO/VISCA protocol to realize camera auto-
tracking function.
● Hot plug-and-play, and auto-recovery function.
● Wide range of voltage from 100V~240VAC
● Without using PC software, our conference controller still owns following
settings:
● Limit on the number of speaking persons: By Setting the number of active
units at the same time (Number is 1/2/4/6/ units), supports up to open 32 wired
microphones in full-on mode.
● Discussion modes:
"OPEN" Free for all, limited by the active units setting by controller，"VOICE"
Can activate MIC by detecting sound without press button, "OVERRIDE" First in
First out, "APPLY" To apply then to speak, "PTT" Press to speak(Optional),"ALL"
Full open mode(Optional).
Voting function: Approve/Abstain/Object
Chairman unit has priority to close all other units or mute them temporarily
Chairman unit can consent the application for speaking from delegate
Simultaneous language interpretation
● With PC software to add more ways of voting:
Approve/Object
Approve/Abstain/Objec , t
 Level：1/2/3/4/5
Ranking：--/-/0/+/++< , br>● By using RFID card to identify, can realize voting with names.

Model for Order

VIS-DCP2000-W.................. Full digital network DSP conference processor
