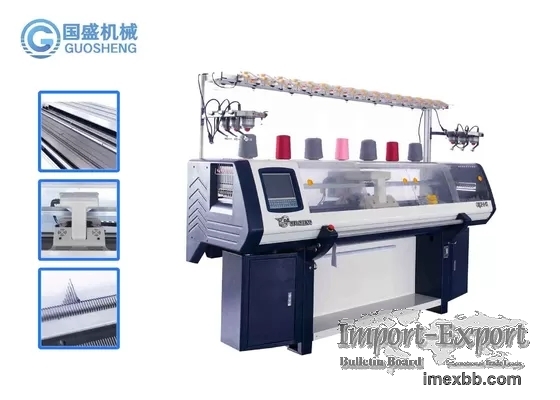

52 Inch Sweater Flat Knitting Machine Automatic 16 Yarn Feeders

PRODUCT DESCRIPTION

Flat knitting machine can knit basic stitch like plain stitch, rib fabric,
links and links, interlock stitch, etc. irregular multi color jacquard, twit
flowers weft organization, cord weave, racked stitch, cable, etc.
Flat knitting machine is suitable to use synthetic, wool, acrylic, mixed
fiber, yarn material etc to knit sweater,collar,shoe upper,school
uniform.ready-made cardigan, hat,scarf and accessories of cloth.


PRODUCT FEATURES



Model GSJX-2-52
Gauge 3G,3.5G,3-5-7G,5G,6G,7G,8G,9G,10G,12G,13G,14G,15G< , br>Knitting System Double System Single Carriage
Knitting Width 52 Inch
Knitting Speed Max.1.2m/Sec
Knitting Function Tranfer,Tuck,Miss,Jacquard,Intarsia,Hide Or Apparent
Shaping.
Stitch Density Stitch System Controlled By Stepping Motor,32 Section Stitch
Selectable,Adjustable Scope Supported By Subdivision Technology:0-650
Racking Controlled By Ac Servo Motor,Racking Within 2 Inches And With Fine
Adjustiing Function.
Drive System Synchronous Belt Drive,Ac Servo System
Needle Selection Controlled By Computer,Electric Magnet Needle Choose
System With High Efficiency.
Scissor And Clamp Including 2 Scissor And 4 Clamps ,Which Individually
Controlled By 6 Motors Separately,Located The Both Of Needle Bed
Separately,Further To Increase The Work Efficiency And To Reduce Yarn
Consumption.
Yarn Carrier 2x8yarn Carriers On Each Side Of 4 Guide Rails,Shiftable On
Any Needle Position
Take Down Roller Programmed Instruction Controlled By Stepping
Motor,32 Section Levels Selection Adjustable Area:0-100
Sinker System Assist Knitting,Have Various Results Of Shaping And Stop.
Protection System The Machine Will Automatically Alarm If Yarn
Breaking,Float Yarn,Rewind,End Of Knitting,Fail Of Racking,Needle Breakage
And Error Programming Occur Ect.
Control System 1,Adopt Lcd Screen,Input Device:Usb,System Memory 256mb,A
Great Amount Of Design Files Can Be Stored.2,Monitoring Menu,Each Kind Of
Operating Parameter,Can Be Shown,And They Can Be Adjusted At Any Time When
The Machine Is Running.3,Design System Is Visual And Easy To Understand And
Upgrad.4,Multi Language Version,There Are Chinese,English Etc.
Power 220v ,Single-Phase,Have Memorizing Function At The Power-Off Moment


52 Inch Sweater Flat Knitting Machine Automatic 16 Yarn Feeders
