510mm Maximum Width Waist Height Swing Barrier Turnstile Gate

PRODUCT DESCRIPTION
Tickets Reading Waist Height Turnstile Entrance Gates 510mm Maximum width





CW428 High grade anti-collision swing turnstile,use STC CPU chip, DC brushed
motor,4 pairs of infrared detection sensors,long life and high
stability,high efficiency and anti-tailing,support various IC/ID card
readers,barcode readers,ID card reader,etc.,easy to hook up with the access
control system.It is widely used in the entrance and exit control of CBD
business centers,government and enterprise office buildings,high-end
residential areas,kindergartens,etc.





Only authorized personnel can pass,and when unauthorized personnel break in,
it will emit sound and light buzzer alarm

Flexible selection of open and closed modes,two-way traffic can also be set
according to the flow of people,the opening and closing speed

of the door wing can be set to improve the efficiency of the equipment

Anti-tailing tracking control technology to strictly prevent unauthorized
personnel from passing through

Anti-pinch function,when the swing arm is in the process of resetting,it
will automatically rebound or the motor will automatically stop working
within the specified time,and the sound and light alarm will be issued at
the same time (additional horn is required)

Anti-shock function,the electromagnetic lock will automatically lock the
swing arm when it does not receive the door opening signal.When the swing
arm is hit,the swing arm will automatically open to the set angle.The
electromagnetic lock will automatically lock,with a maximum impact of 120Nm.

With self-detection,self-diagnosis, and automatic alarm functions; including
illegal intrusion alarm,anti-pinch alarm, anti-tailing buzzer alarm
(additional horn required)

Remote control management function

Can be run online or offline

LED traffic direction indication, display traffic status

When the power is cut off, the swing arm automatically opens the cabinet,
the passage is in a smooth state, and personnel can pass freely to prevent
panic





Technical parameter
Product model CW428
Power supply AC220V±10%,50HZ±10% HZ
Working environment -25℃-70℃
Relative humidity ≤90%
Motor brushless motor
Motor power 60W
Communication interface switch value.RS232.485
Number of passers 30~40/min
Infrared quantity 4Pairs
Normal service life 5 million times
Channel width size 600mm~700mm
Swing material 12mm Plexiglass
Product size L 1200mm x W 220mm x H 900 mm
Chassis material National standard 1.3mm 304 stainless steel
Packing weight About 70 KG(single channel)

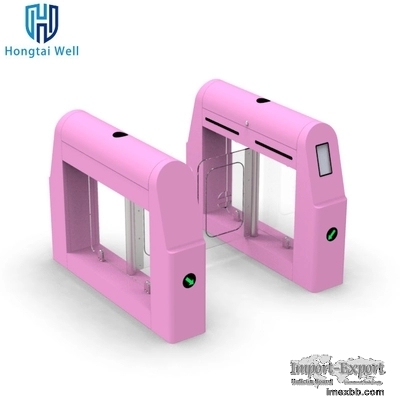

510mm Maximum Width Waist Height Swing Barrier Turnstile Gate 0
