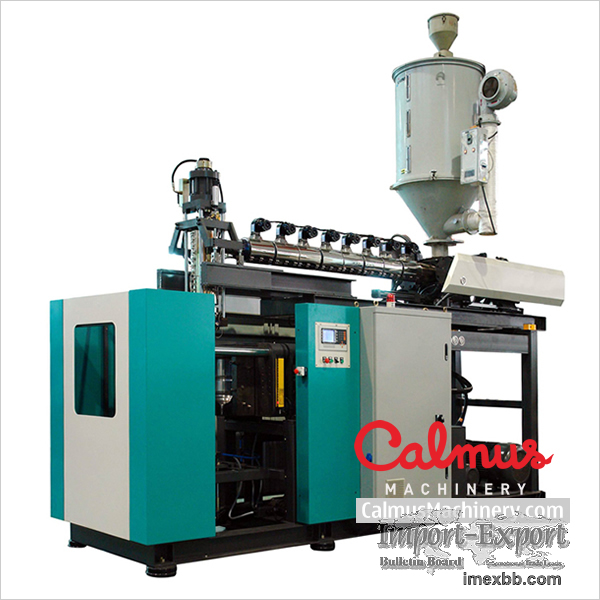

5 Gallon Polycarbonate Blowing Machine for Making 19L 20L PC Bottles

5 Gallon Polycarbonate Bottle Blow Molding Machine 20/19 Liter PC Bottle Making
Machine

Type: Raw Material to Bottle (no need of Preforms)
Feed material: Polycarbonate (PC) raw material (in granules)
Bottle volume: 5 gallon or 20/19 litre
Production capacity: 60 pcs/hour (5 gallons)

1) Plasticizing System
Screw Diameter (mm): 85
Ratio of Screw Length/Diameter (L/D): 28
Plasticizing Rate (kg/hr): 80
Injection Stroke (mm): 360
Screw Speed Range (rph): 10-56

2) Clamping System
Clamping Force (kN): 190
Clamping Stroke (mm): 350
Mould Thickness Range (mm): 370-410
Max Opening between Platens (mm): 720

3) Power Consumption
General Power (kW): 84
Hydraulic Motor (kW): 37
Electrical Heating Power (kW): 44
Average Electricals Power Rating (kW): 58

4) Air Source Connection
Required air source pressure: min. 6-10 bar; Air consumption: 0.4M3/min..

5) Water Source Connection
Required water pressure: min. 2-3 bar; Water consumption: 6M3/min.

6) Control System
100-point wall thickness control, 6" colour display.

7) Machine Dimensions
4,985 (L) x 1,465 (W) x 2,765 (H) mm

8) Machine Weight
6 tons (not including hydraulic oil and mould)

9) Production Capacity
>= 60 bottles/hour (based on qualification rate of 98%)

Points of concern:
What do you need to prepare for making PC (Polycarbonate) Bottles?
PC resin granules in bags. See the following pictures. Simple and the PC resin is
easy to buy locally.

What kind of bottles does the machine can make?
2-5 gallon bottles with or without handle.

Minimum Order: 1 sets
