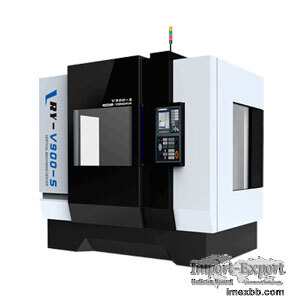

5-axis Machining Center

High-performance and high-precision machining center

The bed and the column are cast in one piece of mineral materia

The headstock adopts an approximate square ram structure

Ourfive axis machining center mainly include bridge 5-axis machining centers and
vertical 5-axis machining centers, such as GB8550BF5, VB63F5.

The structure of our 5 axis machining center is gantry type, which is high steady,
high rigidity.

The design of our 5-axis machining centers is that the fixed parts are made from
mineral casting and the traveling parts are made of high strength alloy steel
which makes our machining centers have excellent precise retention, fast
responsibility, and rapid traveling speed.

According to the workpieces, our 5-axis machining centers can choose the A/B swing
head or the double swiving rotary table to achieve any angle positioning machining
of the complex workpieces.

5-AXIS MACHINING CENTER ADVANTAGES
To make sure the highest precision, stability, and precision preservation of each
machine, we take in new casting material UHPC and build our casting workshop. For
the current manufacture of the company, all machine bases and columns are cast by
UHPC strictly according to German casting standards.
Better Vibration Absorption

The vibration absorption of UHPC mineral casting is 10 times better than iron
casting. Under a large dynamic load, the stability of machine precision can be
guaranteed, while the surface finish quality of the workpiece can also be improved
by 20%.

Excellent Thermal Stability

The thermal conductivity of UHPC mineral casting is 1/20 of that of iron casting,
the specific heat capacity is 2.1 times that of iron casting. Excellent thermal
stability and thermal inertia can effectively control any kind of machine
deformation caused by temperature change, the stability of machine precision is
further guaranteed.

High Rigidity

The moving parts are welded by high-strength low-alloy steel, the material
elasticity modulus is around 1.4 times that of iron casting so that overall
rigidity can be improved by more than 30%.

Lighter Weight

Compared to iron casting, the lighter-weight structure can reduce unit weight by
20%-30%, effectively reduce the inertia of moving parts and increase the dynamic
response by 10-20%.

ATC System

The Vertical type 5-Axis is equipment with the chain type tool magazine driven by
the servo motor, high running speed, high positioning accuracy that can greatly
meet different processing requirements of customers. The tool sleeve running
speed: 150 tool sleeves/min, capacity: 40T.

Auto-lubrication System

The machining centers are equipped with an auto-lubrication system that can auto
lubricate the Linear Guide Rail, Block, Ball Screw, and Spindle at set time and
volume, leaving no dead ends. The CNC machining center's dynamic processing
accuracy and stability are guaranteed.

Air Conditioner

The electrical cabinet has an air conditioner, which keeps a constant temperature
that guarantees dynamic processing accuracy.

BRIDGE TYPE & VERTICAL TYPE 5-AXIS MACHINING CENTERS
Bridge type 5-axis linkage is achieved by the combination of the C axis inside the
ram and the A-axis outside. C axis inside the ram can enlarge the process range.
Several attached milling heads can be changed and installed in the C axis, which
guarantees the consistency of the positioning axis. The A axis can be low energy
big torque transmission through its structure of gear driven by the small motor.

Vertical type 5-axis machining centers structure is double swiving table that can
make the 5-axis linkage and any angle positioning machining which meets the demand
of the complex curved parts.

As one of the cnc machining center manufacturers, we provide machining cnc centre,
horizontal turning lathe, cnc machinery for sale and etc. For more information,
please feel free to contact us!
