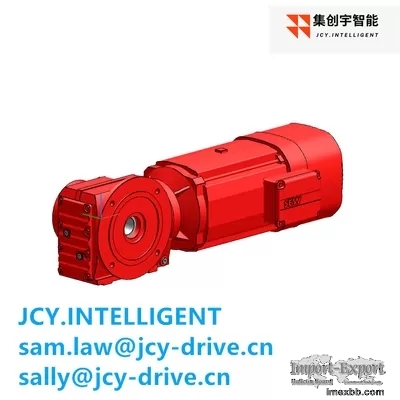

5.5KW Helical Bevel Drive Gear Motor 3HP M1A Hollow Shaft 40mm

Product Description
▶▶▶Description:

Helical-bevel gearmotors
Our helical-bevel gearmotors K..DR.. are an excellent choice for many
applications that require compact drives with high efficiency. As they are
especially low-maintenance they will reduce your costs in day-to-day
operation.

Helical-bevel gearmotors: low-maintenance and high efficiency

The helical and bevel gear reduction motor is a Helical-bevel shaft
reduction motor suitable for high-torque, wear-resistant applications. Low
backlash helical - bevel gear reducers can be used for precise positioning
control

K series Helical-bevel gearmotors
✪●✪
Product size&Technical data
Gear unit size K37 K47 K57 K67 K77 K87
Motor Power(KW) 0.12-3 0.12-3 0.12-7.5 0.12-7.5 0.12-15
0.25-30
gear ratio range 3.98-106.38 4.64-131.87 4.69-145.14 5.2-
144.79 7.24-192.18 7.21-197.37
Mamax Gear unit(Nm) 200 400 600 820 1550 2700
　 　 　 　 　 　 　
Gear unit size K97 K107 K127 K157 K167 K187
Motor Power(KW) 0.75-37 2.2-45 5.5-90 9.2-200 9.2-200 9.2-200
gear ratio range 7.54-176.05 7.35-143.47 8.68-146.07
12.65-150.41 17.34-164.50 17.18-179.86
Mamax Gear unit(Nm) 4300 8000 13000 20000 35000 53000
　 　 　 　 　 　 　
Gear unit size K19 K29 K39 K49 　 　
Motor Power(KW) 0.12 - 1.1 0.12 - 2.2 0.12 - 4 0.12 - 7.5
　 　
gear ratio range 4.5 - 58.68 3.19 - 71.93 2.81 - 58.24 4.00
- 75.20 　 　
Mamax Gear unit(Nm) 80 130 300 500 　 　

5.5KW Helical Bevel Drive Gear Motor 3HP M1A Hollow Shaft 40mm 0
▶▶▶Features

☆Helical-bevel gear units (two and three stages)
•High efficiency
•Gearing with high fatigue strength
•Long, maintenance-free service life
•Can be combined with our complete motor portfolio
☆Sizes K..37 to K..187 (three stages)
•Double gear units for very low output speeds also available
•Reduced backlash variant
•Available variants:
•Foot- or flange-mounted
•B5 or B14 flange-mounted
•Solid or hollow shaft
•Hollow shaft with keyed connection, shrink disk, splined hollow shaft, or
TorqLOC®



Catalog designation KAF67DRN132S4BE11/AL
Product Bevel-helical gearmotors K..DRN.. (IE3)
Rated motor speed [1/min] 1461
Output speed [1/min] 76
Overall gear ratio 19.30
Output torque [Nm] 690
Service factor SEW-FB 1.10
Mounting position M1A
Base / top coat 7031 Blue gray (51370310)
Position of connector/terminal box [°] 0
Cable entry/connector position X
Hollow shaft [mm] 40
Design type B5 flange-mounted design with hollow shaft
Permitted output overhung load with n=1400 [N] 3150
Lubricant quantity 1st gear unit [Liter] 1.1
Flange diameter [mm] 250
Flange 250
Motor power [kW] 5.5



▶▶▶ SEW K series Helical-bevel gearmotors

Three-stage bevel gear - bevel gear with high output torque, hollow or solid
shaft, flange, footing or torque arm mounting
Transmission efficiency up to 98%, small size, light weight, low vibration,
low noise
out speed (rpm): 0.1rpm - 522 rpm
Torque range(Nm)/Power range(KW): 200Nm - 50,000 Nm/ 0.12KW - 200 kW



▶▶▶FAQ
Q: Can you print other colors?
A:Yes. Customized color can be printed on the gear motor according to your
requirements.

Q: Can we buy 1 pc of each item for quality testing?
A: Yes, we are glad to accept trial order for quality testing.


5.5KW Helical Bevel Drive Gear Motor 3HP M1A Hollow Shaft 40mm 1
