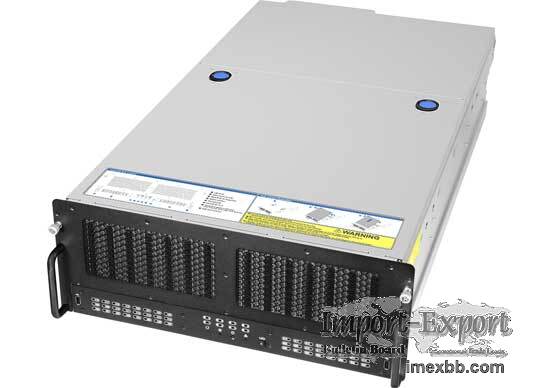

4U48Bay E5 high performance SYS-8049R-S48 Computer Server

SYS-8048R-S48 series products are based on Xeon® Scalable series processors of
Intel platform and modular design, providing customers with a 4U dual-socket
server with high performance, high reliability, low power consumption and
optimal heat dissipation. Whether it's an enterprise-level data center or a
developing enterprise application, the 48 bay server can provide a variety of
flexible configuration options, which can better meet the growing server demand
of customers, provide reliable hardware support for data storage, big data
processing, virtualization and other applications, and is the best choice for
large-scale industries, enterprises and government users with high requirements
for stability and practicality.

SPECIFICATIONS OF 4U48BAY E5 HIGH PERFORMANCE SYS-8049R-S48 COMPUTER SERVER

Category
Order Model
SYS-8049R-S48

Product Form
4U rack server

Processor
Number of Processors
2 x Socket P (LGA 3647)

Processor Model
1st/2nd generation Intel®Xeon® scalable processor

UPI (10.4 GT/s)

Chip Set
Intel®C621 chipset

Internal Storage
Memory Slots
16 memory slots (4 channels /CPU, 8-DIMM slots /CPU)

Internal Storage Capacity
Maximum support for 4TB 3DS RDIMM

Maximum support is 4TB 3DS LRDIMM.

Up to 2TB Intel® Optane™ DC (only supported by 2nd generation scalable
processors)

Memory Type
2933/2666/2400/2133MHz ECC DDR4 RDIMM, LRDIMM

Memory Size
RDIMM: 16G, 32G, 64GB, 128GB

LRDIMM: 64GB, 128GB, 256GB

Front Storage
Number of Hard Disks
48 hot-plug storage slots

Controller
LSI-9361-8I

Raid ,
Raid 0, 1, 5, 6, 50, 60

Interface Type
SATA3 / SAS

Hard Disk Size
2.5”/ 3.5”

Post-storage (optional)
Number of Hard Disks
2

Controller
PCH integration

Interface Type
SATA3

Hard Disk Size
2.5

M.2 interface
Quantity
2

Interface Type
PCI-E 3.0 x4

Measure
2280, 2240

DOM
Quantity
2

Controller ,
PCH integration

Gigabit Network
Controller
Intel i210 Enterprise Gigabit Network Controller

Number of Interfaces
Two gigabit networks, supporting 10/100/1000Mbps

Interface Form
1 double-layer RJ45 interface

2.5 Gigabit Network
Controller
Intel i225 Enterprise Gigabit Network Controller

Number of Interfaces
Two gigabit networks, supporting 10/100/1000Mbps/2500Mbps.

Interface Form
1 double-layer RJ45 interface

IPMI
Management Interface
1 standard RJ45, 10/100/1000Mbps network interface

Show
Controller
ASPEED AST2500 BMC

Interface Form
1 double-layer RJ45 interface

IPMI
Management Interface
1 standard RJ45, 10/100/1000Mbps network interface

Show
Controller
ASPEED AST2500 BMC

Interface Form
VGA

I/O
Pcie Expansion
3 standard PCIe 3.0 x16(x16 slots)

3 standard PCIe 3.0 x8(x8 slots)

Backplane I/O interface
2 USB 3.0 interface

Xusb2.0 interface

1 x VGA interface

1 com interface

1 uid switch (with LED lamp)

2 rj-45 gbe LAN interface

2 rj-45 2.5 gbe LAN interface

1 rj-45 IPMI management interface

Switch /LED
X power switch (with power indicator)

1 x Reset

1 restart switch

48 x hard drive indicator

1 x power indicator

1 power supply/temperature abnormal indicator lamp

1 x power indicator

X fan abnormal indicator light

1 x UID indicator

System
Operating System Support
Windows® Server 2016

Windows® Server 2012 R2

Windows® 10 64-bit

RedHat® Enterprise Linux

SuSE® Linux Enterprise Server

CentOS

Ubuntu

VMware

Power
Input
1+1 redundant power supply 1100W

Structure
Fan
Eight hot-swappable temperature-controlled fans

Size of Case
447mm (width) 176mm (height) 818mm (depth)

Installation Kit
Support slide rail

Environment
Parameter
Operating temperature: 0°C to 35°C; Operating temperature: -40 °C to 70 °C

Working relative humidity: 8% to 90% (without condensation); Non-working
relative humidity: 5% to 95% (without condensation)

HIGHLIGHTS OF 4U48BAY E5 HIGH PERFORMANCE SYS-8049R-S48 COMPUTER SERVER

Compared with the previous generation, Xeon® Scalable series processors based
on Intel platform have 50% more cores and caches, which greatly improves
processor performance. In terms of memory, the latest DDR4 memory technology is
adopted, which can support a total capacity of 4T at most. Higher density and
larger capacity provide better performance for enterprise virtualization and
business processing.

Adopting the latest DDR4 memory technology, it can support a total capacity of
4T at most, and higher density and larger capacity provide better performance
for enterprise virtualization and business processing;

The memory technology that supports Intel Aoteng's persistent memory
innovation, which uniquely combines economical large capacity with data
persistence support. Enterprise innovation is driven by increased capacity and
unique memory mode, which significantly increases the density of virtual
machines while reducing the overall TCO, and improves memory security through
the security features of automatic hardware integration.

Support 6 PCI E 3.0 expansion slots, which can realize flexible expansion;

The storage backplane adopts 12Gb SAS Expander chip, which supports 48 3.5-inch
hot-plug hard disks, and the storage type supports 6G SATAIII, SAS type disks,
providing a variety of storage solutions for enterprise applications, such as
large-capacity hard disk pool, tiered storage, distributed storage and other
applications;

Support 2-port Intel Gigabit network port/2-port Intel 2.5 Gigabit network port
and an IPMI management network port, providing various network transmission and
communication solutions for enterprise applications;

Support USB3.0, which can backup data to mobile storage at high speed;

Redundant fans and redundant power supplies to eliminate a single point of
failure;

Time-sharing power-on mode is adopted for the disk pack, which effectively
reduces the power load and the surge impact on the power grid;

Green, support gold and platinum power supply, reduce TCO expenditure;

Support hardware monitoring, which can remotely monitor the working state of
hardware such as host power supply and fan.

As one of the hardware components of iot companies, JWIPC can provide end-to-
end solutions and IoT hardware customization services for system integrators
and OEMs around the world, helping various industries achieve informatization
and intelligent development.

If you want to know more types of embedded boards, please visit our website.

Minimum Order: 10 sets
