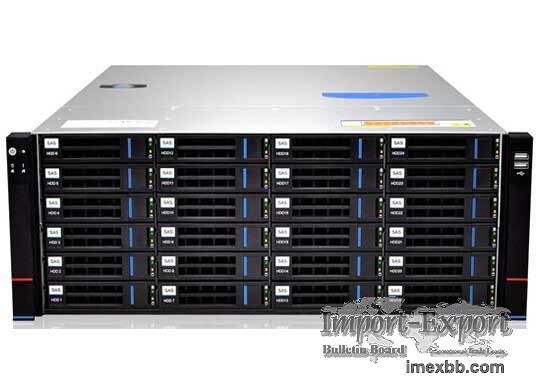

4U24Bay High-performance SYS-6049C Storage Server

With the continuous increase of data storage capacity, the high cost of storage
equipment has become an important IT expenditure for users, and network storage
products are favored by more and more users for their advantages of high
performance, high reliability, large capacity, low cost and easy operation.
SYS-6049C series is an enterprise-class high-performance rack storage server
product with 4U 24-bit optimization. A single machine supports 24 3.5
"SAS/Sataiii hot-plug hard disks. This product combines the advantages of the
current mainstream storage technology, and its redundant components are
designed modularly to meet the demand of mainstream customers for data storage.
4u 24 bay server case is a network storage product with strong performance,
large capacity, easy maintenance and high reliability. 4u storage server
chassis is a good choice for unified storage and centralized management of user
data, NAS/IPSAN, NVR products of video surveillance, VOD and nonlinear editing
system of rad
SPECIFICATIONS OF 4U24BAY HIGH-PERFORMANCE SYS-6049C STORAGE SERVER

Category
Model
SYS-6049C-S24

Product Form
4U rack storage server

Processor
Number of Processors
one

Processor Model
Intel®Xeon® E2100 / E2200 Core/i5/i3/Pentium series processors

Chip Set
Intel®C246 chipset

Memory
Memory Slots
4 memory slots (2 channels /CPU, 2-DIMM slots /CPU)

Internal Storage Capacity
The maximum support is 128 UDIMM.

Memory Type
2933/2666/2400/2133MHz ECC/Non-ECC DDR4 UDIMM

Memory Size
4G, 8G, 16G, 32G

Front Storage
Number of Hard Disks
24 hot-plug storage slots

Controller
LSI-9361-8I

Raid ,
Raid 0, 1, 5, 6, 50, 60

Interface Type
SATA3 / SAS

Hard Disk Size
2.5”/ 3.5”

Post-storage (optional)
Number of Hard Disks
2

Controller
PCH integration

Interface Type
SATA3

Hard Disk Size
2.5

M.2 Interface
Quantity
one

Interface Type
PCI-E 3.0 x2

Measure
2280, 2260, 2240

Gigabit Network
Controller
Intel i210 Enterprise Gigabit Network Controller

Number of Interfaces
4 Gigabit networks, supporting 10/100/1000Mbps

Interface Form
Two double-layer RJ45 interfaces

IPMI
Management Interface
1 standard RJ45, 10/100/1000Mbps network interface

Show
Controller
ASPEED AST2400 BMC

Interface Form
VGA

Controller
Intel jixian

Interface Form
HDMI

I/O
PCIe Expansion
1 standard PCIe 3.0 x8(x16 slot)

1 standard PCIe 3.0 x8(x8 slot)

1 standard PCIe 3.0 x4(x8 slot)

Backplane I/O Interface
Xusb3.0 interface

1 x HDMI interface

1 x VGA interface

1 reset switch

1 com interface

1 uid switch (with LED lamp)

X rj-45 gbe LAN interface/

Switch /LED
X power switch (with power indicator)

1 x Reset

1 restart switch

1 hard drive indicator

1 abnormal fan indicator/abnormal /CPU temperature indicator

1 x network (1-4) indicator

1 x management port indicator

System
Operating System Support
Windows® Server 2016

Windows® Server 2012 R2

Windows® 10 64-bit

RedHat® Enterprise Linux

SuSE® Linux Enterprise Server

CentOS

Ubuntu

VMware

Citrix XenServer

Power
Input
1+1 redundant power supply 550W/800W

Structure
Fan
3 hot-swappable 8038 temperature-controlled fans

Size of Case
444mm (width) 177mm (height) 670mm (depth)

Installation Kit
Support slide rail

Environment
Parameter
Operating temperature: 0°C to 35°C; Operating temperature:-40 °C to 70 °C

Working relative humidity: 8% to 90% (without condensation); Non-working
relative humidity: 5% to 95% (without condensation)

HIGHLIGHTS OF 4U24BAY HIGH-PERFORMANCE SYS-6049C STORAGE SERVER

Intel ®coffee lake C246 chipset is adopted, which supports Intel Gen8/9 series
multi-core processors. The performance is improved by 20% compared with that
before, and the power consumption is lower;

Provide 4 x DIMM memory slot, support DDR4 UDIMM, and support up to 64 GB；

1 x PCIe 3.0 x16(X8 signal) and 2 x PCIe 3.0 x8 expansion slot are provided,
and disk expansion can be realized through SAS card;

The memory backplane adopts 12Gb SAS Expander chip, which supports 24 3.5'6Gb
SAS/SATAIII hot-plug hard disks;

Intel® Gigabit port 4-Port, which supports multi-port load balancing;

IPMI2.0； is supported;

Support USB3.0, which can backup data to mobile storage at high speed;

Redundant fans and redundant power supplies to eliminate a single point of
failure;

1 m.2 system disk, which supports SATA3 /PCIE signals;

Time-sharing power-on mode is adopted for the disk pack, which effectively
reduces the power load and the surge impact on the power grid;

Green, support gold and platinum power supply, reduce TCO expenditure;

Support hardware monitoring, which can remotely monitor the working state of
hardware such as host power supply and fan.

Support Windows and Linux systems, provide system management API resources, and
realize customization on demand.

As a leading brand of hardware in iot solutions, JWIPC IOT hardware companies
has a one-stop hardware solution of "Terminal-Edge-Cloud-Network", including
digital signage players, embedded motherboards, embedded PC, all-in-one PC,
edge computing, servers, switch Computer, etc. product line. JWIPC focuses on
the R&D and production of IoT hardware, has a fully independent R&D center, and
its R&D personnel has rich R&D experience. Wholly-owned manufacturing plant to
ensure product delivery and quality.

Minimum Order: 10 sets
