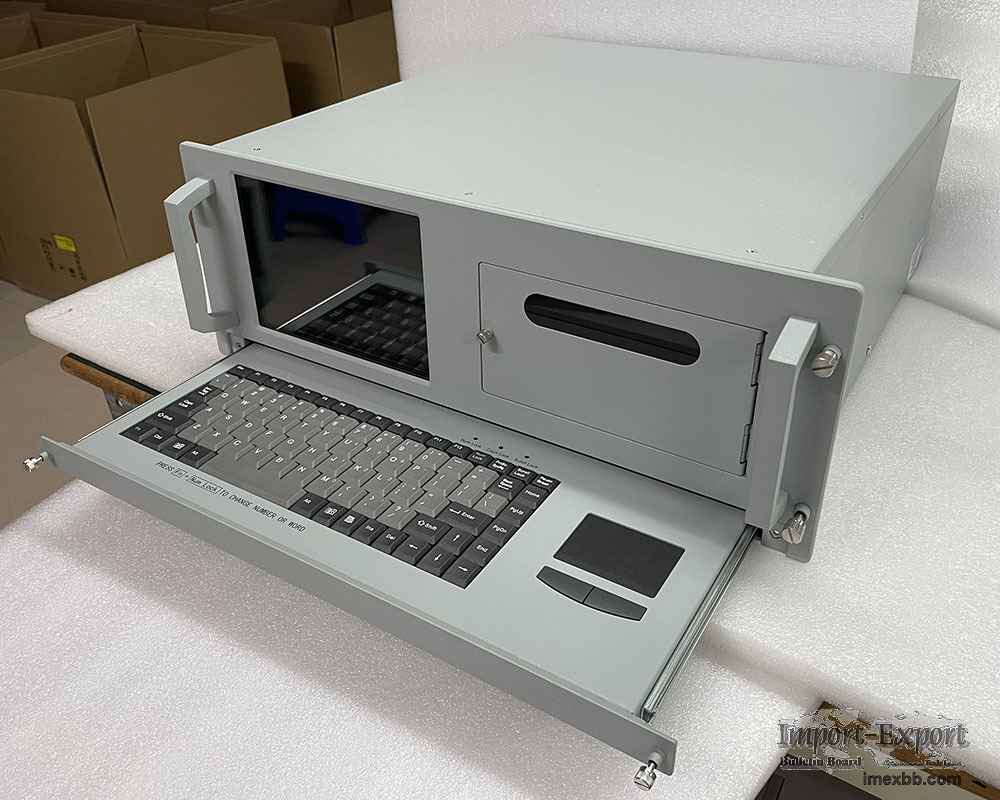

4U Rackmount IPC chassis supports ATX or Micro motherboard

Features
4U industrial computer Rackmount workstation
Support Full-size CPU card or ATX/Micro-ATX motherboard foam factor
For ATX motherboard 7 expansion slots/ backplane 14 expansion slots
8" SVGA TFT LCD display Support 1024x768 pixels,250 cd/m2 brightness
Built-in keyboard and Touchpad drawer
Shock-resistant drive bays to hold 1x 5.25" and 2x 3.5" drives
Signal input VGA and DVI interface
2xUSB Accessible from the front door
Support PS2 and redundant power supply
Power & HDD status indicator by front viewable LED indicator
Aluminium front panel, Heavy duty steel chassis
Specifications
System
Constructio , n Compact 19" 4u Rackmount Heavy-Duty Steel Chassis
Disk Driver Bay 5.25" x1 , 3.5" x2
Cooling Fan 2x cooling fan, with air filter and Moisture proof design
Keyboard Built-in full-function keyboard and touch pad.
OSD OSD function in front panel
I/O Connector Front panel: 2xUSB2.0
Rear panel: DVI, VGA, USB, PS/2(Optional)
LED indicators & Switch Power LED indicator(Green), HDD LED indicator(Red),
Power Switch and reset
Color White
LCD display
Display type 8" XGA TFT LCD
Resolution 1024x768
Colors 16.7M
Backlight LED
Luminance 250 cd/m2
Contrast Ratio 700:1
View angle 110°(H) , 120°(V)
LCD MBTF 50,000hrs
Touchscreen(Optional)
Type Resistive Touch Screen
Resolution continuous
Controller Interface Internal USB ( RS-232 interface option)
Light Transmission 80% or more
Operating Force 250g
Environmental
Oprerating Tempreture -20°C to 60°C
Storage Humidity 5% to 95%@ 40°C, non-condensing
Vibration 5-17Hz/1mm amplitude, 17-640Hz/1.5g acceleration
Shock 10G peak acceleration (11 msec. duration)
Safty FCC/VDE(Level A)
Packing info
Dimensions(WxHxD) 386mm x 141.6mm x 376 mm
Packing Dimension 590x390x550mm
NET weight 16 KG
Ordering information
RCWS-08N 4U rackmount chassis, 8"TFT LCD, for 14-slot PCI/ISA Backplane or ATX/
Micro-ATX motherboard foam factor
RCWS-08NT 4U rackmount chassis, 8"TFT LCD, touchscreen, for 14-slot PCI/ISA
Backplane or ATX/ Micro-ATX motherboard foam factor
