4G LTE CAT1 mini smart GPS tracker real-time positioning gps tracking Coban



1, Summary
This tracker is a new product based on the LTE/ GSM / GPRS network and
GPS satellite positioning system, which set multiple functions of
security, positioning, monitoring surveillance, emergency alarms and
tracking in its entirety. It can track and monitor remote target by SMS
or internet.
Vehicle GPS tracker with built-in GPS/GSM antennas ,Anti-theft GPS car
tracker Vehicle GPS tracker with built-in GPS/GSM antennas ,Anti-theft
GPS car tracker


2, Specifications

Content
Specification

DIM
9.6×5.3×1.6cm

Weight
70g

Network
GSM/GPRS/LTE

Band

4G (B1/B2/B3/B4/B5/B7/B8/B28/B40)
2G (1900/1800/900/850 MHz)

GPS sensitivity
-159dBm

GPS accuracy
5m

GPS start time
Cold status  45s
Warm status  35s
 Hot status  1s

Car power supply
12 V -24V

Back up battery
Chargeable 3.7V 70mAh Li-ion battery

Storage Temp
-40°C to +85°C

Operation Temp.
-20°C to +65°C

Humidity
5%--95% non-condensing


2022 car gps tracker 4G gps-401d lte gps tracking device for motorcycle 4G gps
tracker gps-401d



*4G VOLTE/ 2G gsm network
*New platform lifetime free use :www.baanooliot.com,multiple language and maps
*For Vehicle/motorycle/ electric car, motorbike
*Remote Cut-Off (Fuel/Power)
*Multiple Alerts
ACC/ movement /geo-fence entry/exit, abnormal vibration, over speed,
* auto track with/without sleep mode
* Internal buzzur siren
*Cheap price







GPS Tracker Coban 401 4g Specifications:



Product name

LTE wireless data terminal

Model

401

DIM.

6.78*4.1*2.15 cm

Weight

58g

Network

, GSM/GPRS/LTE

Band

4G(B1/B2/B3/B4/B5/ , B7/B8/B28/B40)

2G(850/900/1800/1900Mhz)
,
GPS sensitivity

-165dBm

GPS accuracy

5m

Time To First Fix

Cold status 45s

Warm status 35s

Hot status 1s

Applicable car power

12V-24V

Battery

Chargea , ble changeable 3.7V 100mAh Li-ion battery

Storage Temp.

-40°C to +85°C

Operation Temp.

-20°C to +65°C

Humidity

5%--95% non-condensing





1. Terminal installation
Please ask a qualified engineer to install it.

The installation environment should ensure that the GSM and GPS signals are
good

Please do not install it in a dusty and humid environment.

Find the 5PIN wiring harness provided with the product, insert it into the
corresponding wiring hole of the product, and connect to the original car
circuit as shown in the following Wiring Diagram:




2022 car gps tracker 4G gps-401d lte gps tracking device for motorcycle 4G gps
tracker gps-401d

Wiring Diagram (Fuel motorcycle/car)




GPS-401C/D (12/24V) for motorcycle car tracking with relay oil engine stop
function

GPS401C/D coban gps tracking device

2022 car gps tracker 4G gps-401d lte gps tracking device for motorcycle 4G gps
tracker gps-401d



Applications:



* Motorcycles,Vehicles
* Private car anti-theft
* Fleet management

* Car rent
* Insurance company



Auto electronics gps car locator gps-401C coban gps tracking device
Vehicle gps tracking device gps-401 Functions:

1 Changing password
2 Authorization
3 Single tracking
4 Tracking Scheme
5 Smart angle updating
6 Location based service (LBS) / Cell-ID tracking
7 Listen
8 Forwarding incoming SMS messages
9 SIM Card Balance Enquiry
10 ACC ON/OFF Alert
11 Lock motor(For A/B model)
12 Remote boot/off motor(For A/B model)
13 Remote immobilizing(For C/D model)
14 Configure times of alarm SMS
15 Alarms
16 Remote control function(For B/D model)
17 Arming
18 Silent Arming
19 Disarming
20 Alarm function in arming state
21 Check Status
22 Check IMEI
23 Local time setting
24 Reset Hardware
25 TCP / UDP switch
26 SMS Mode
27 Configure SMS monitoring center number
28 Configure heartbeat package interval
29 Initialization






4G Coban vehicel gps tracker/ gps track
Coban gps-401 4g
*4G LTE/ 2G gsm network - 4G (B1/B2/B3/B4/B5/B7/B8/B28/B40)
2G (1900/1800/900/850 MHz)
*wheel alarm for GPS-401AB
* GPS-401AB (9-100V Operating Voltage ) GPS-401CD( 12/24V)
*App and web platform lifetime free use.
*For Vehicle/motorycle/ electric car, motorbike
*Remote Cut-Off (Fuel/Power)
*Multiple Alerts
ACC/ movement /geo-fence entry/exit, abnormal vibration, over speed,
* auto track with/without sleep mode
* Internal buzzur siren
*Cheap price

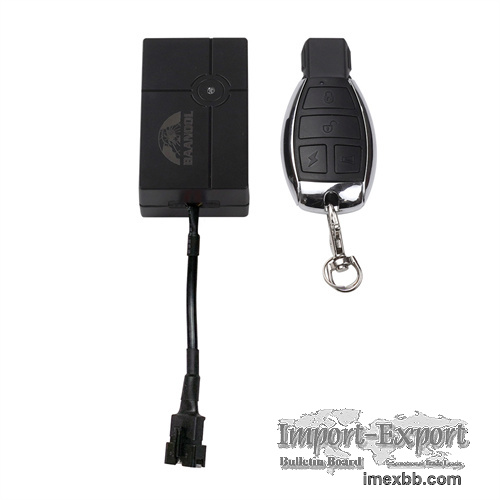

Detailed Images:
