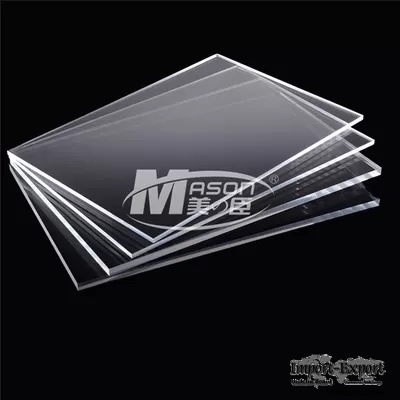

48x96'' Clear Acrylic Sheet

PRODUCT DESCRIPTION


Mason 3/16'' Thick 48x96'' Crystal Clear Cast

Perspex Acrylic Sheets

Description

Plexiglass sheet is a type of acrylic and you will often find the two words
(plexi glass and acrylic sheet) to be

interchangable.The scientific name for plexiglass is Poly(methyl
methacrylate) (PMMA) and it is most often

used as a shatter-resistent or lightweight alternative for glass.



48x96'' Clear Acrylic Sheet 0



Applications

Skylights

Windo , w glazing

Retail displays

Signs

Optical displays

Picture framing



48x96'' Clear Acrylic Sheet 1



MASON CLEAR CAST ACRYLICPARAMETER

Item Test Result Item Test Result
Transmittance% 94 Tensile Strain at Break, Mpa 5
Rockwell Hardness(M) 97 Modulus of elasticity in tension, Mpa 3.03
Vicat Softening Temperature(1.8MPA) 101 Rockwell Hardness(R) 124
Coefficient of Thermal Expansion ℃-1 7.0*10-5 Resistance to
crazing in solvent No crazing
Dimensional Stability(shrinkage) % 1.9 Charpy Non-notch Impact
Strength KJ/M2 21.9(C)
Tensile strength, Mpa 74.7

MASON ACRYLIC SPECIFICATION

(The specification is 3mm plate, size will decreases with the increase of
thickness)

Code Size with rubber edge Size after cut edge
Q 1250*1850mm 1210*1820mm
L0 1250*2450mm(Include Frosted) 1210*2420mm(Include Frosted)
L1 1270*2490mm 1220*2440mm
L2 1310*2530mm 1270*2490mm
L3 1350*2570mm 1310*2530mm
N 1550*3050mm 1510*3020mm
M 2050*3050mm(Include Frosted) 2010*3010mm(Include Frosted)

Click to Enlarge
