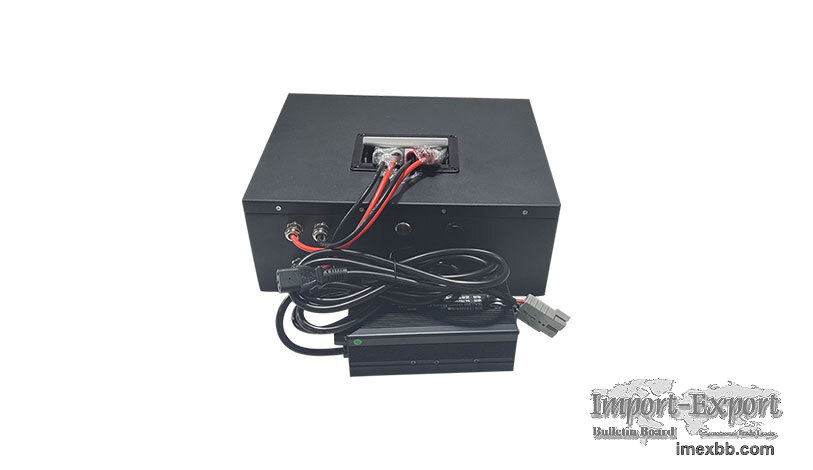

48V 20Ah Lithium Ion Battery Pack

With its own designed high-quality BMS, the 48V 20Ah lithium ion battery pack
has functions of overcharge, over-discharge, over current, short circuit, and
protection circuit. Our rechargeable lithium battery packs provide a safe and
reliable option for a wide range of applications.

How long will 48v 20Ah lithium ion battery last？
Are all lithium ion battery packs low productivity?NO, Come to see PACE lithium
ion battery 48 volt 20Ah. The life cycle reaches 2000 times at least. Of
course, the life cycle is closely related to the usage environment and the
charge/discharge rate. A gentle operating environment and proper charging and
discharging will greatly increase the life cycle to well over 2,000 cycles.

Main Advantages of 48V 20Ah lithium ion battery pack
The main reasons for choosing 24V 20Ah lithium ion battery pack are safety and
quality. If you plan to buy lithium ion batteries to power your AGV, Robot,
Golf Cart, RV, Forklift, PACE is a trusted choice. Our 48V 20Ah lithium ion
battery performs well. It is commonly used for motivation where long life, low
maintenance, fast charging, sustainable, and good safety levels are required.

Specifications of 48V 20Ah Lithium Battery
Model 15S20Ah-PC01-A
Chemistry Lithium Battery Pack
Nominal Voltage 48V
Nominal Capacity 20AH
Charge Current ≤15A
Discharge Current ≤25A
Cycle Life @80% DOD >2000cycles
Charge Temperature 0 to 55ºC
Discharge Temperature -20 to 60ºC
Storage Temperature -20 to 35ºC (3 months)
Storage Relative Humidity 60±25%
BMS Integrated
Weight 16Kg
Size W*H*L(mm) L350mm*W338mm*H140mm
Communication Protocol RS485&RS232
OEM/ODM Support Customize

*The above data is for reference only. CONTACT US for customized solutions.

PACE focus on the research and development, integration, and sales of BMS and
lithium battery packs. Such as lfp battery packs, custom lithium ion battery
pack, 48v robot battery, etc.

Minimum Order: 1 pieces
