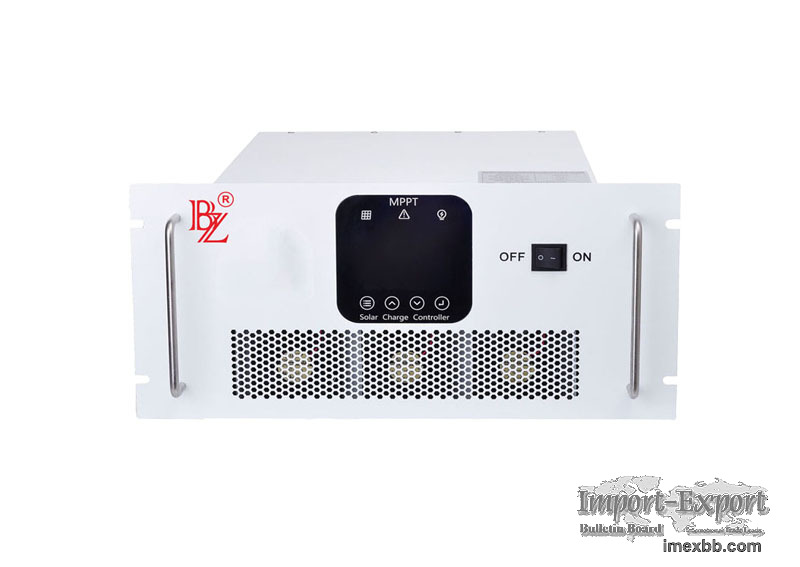

480V-80A lithium battery storage solar system charge controller with MPPT a

480V-80A lithium battery storage solar system charge controller with MPPT
and LCD touch screen

https://www.alibaba.com/product-deta , il/480V-80A-lithium-battery-storage-
solar_1600 , 504178921.html?spm=a2700.shop_index.89.14.7b4d7ffb , kEiJN6

Ø The solar controller adopts multiphase synchronous rectification
technology and common negative pole design, it chooses high speed processor
and advanced MPPT algorithm to make it has high response speed, high
reliability and other standards

Ø The advanced MPPT algorithm that the solar controller adopts can trace
the maximum power point of PV arrays quickly in any situation to obtain the
max. power from PV arrays. And the multiphase synchronous rectification
technology can achieve high conversion efficiency in any charging
environment and improve the utilization rate of solar power system greatly.
According to the rated voltage of battery bank system, our factory can
provide the MPPT solar charge controller from 192V to 540V which suitable to
almost off grid solar power system

1.2.1 High speed & performance 32bit processor, advanced EMC design

1.2.2 Advanced MPPT tracking algorithm, the tracking efficiency more
than 99%

1.2.3 High performance IGBT power module as electronic switch, plus
multiphase synchronous rectification technology, improves the stable greatly

1.2.4 Ultrafast maximum power point tracking speed to ensure
tracking efficiency

1.2.5 Perfect battery protection function and advanced battery
activation technology which increases battery lifespan 30% at least and
improves the system performance

1.2.6 Widely PV arrays’ voltage input, this can save the cost of PV
combiner box, wires and construction

1.2.7 Full enclosed duct design and high-speed fan for cooling makes
the controller suitable for various harsh environments

1.2.8 3’’ LCD screen and LED indicators show working parameters
and system status

1.2.9 Parameters can be adjusted through touching keys in LCD panel

1.2.10 Users can check the power generation of daily, monthly and
total through the statistical function of generating capacity (SOC)

1.2.11 Complete menu display and operation, plus the humanized design
of browsing interface, makes the operation more easy

1.2.12 It shows the environment temperature, data and real time, auto
temperature compensation function

1.2.13 Twice protection function to protect battery from damage when
the power switch is down

1.2.14 Standard Modbus communication protocol for RS-485 or GPRS
communication to extend the communication distance (optional function)

Minimum Order: 1 pieces
