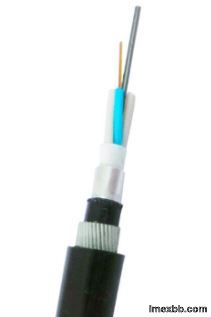

48 72 Cores Outdoor Fiber Optic Cable Aluminium Armoured Anti Rodent GYTA33

GYTA33 is an outdoor communication optical cable of metallic strength member of
the loose tube jelly-filled structure, with Al-polyethylene laminated sheath and
single-layer thin round steel wire armored polyethylene outer sheath.
The loose tubes are made of high modulus plastics (PBT) and filled withwater
resistant filling gel. Loose tubes are stranded around the metallic central
strength member, cable core is filled with cable filling compound. The corrugated
aluminum tape is longitudinally applied over the cable core, and combined with
polyethylene (PE) inner sheath. Galvanized steel wires are stranded around inner
sheath, and then extruded with PE outer sheath.
