40Ton Electric Arc Furnace Steel Melting Equipment in Industrial Production

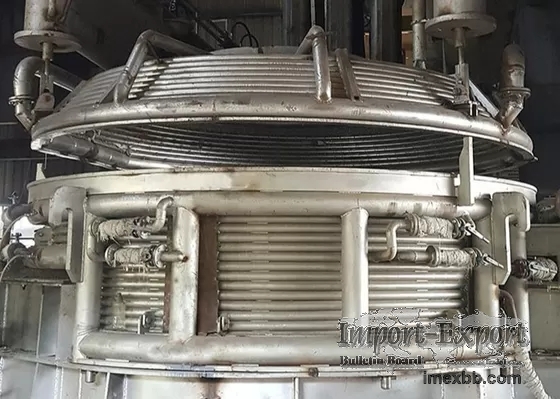

40T Steelmaking Electric Arc Furnace Steel Melting Equipment 0

According to the power of the furnace is divided into ordinary power, high power,
ultra-high power electric furnace.

Modern steelmaking electric furnace has widely adopted new technologies such as
water cooled furnace cover, water cooled furnace wall, conductive lateral arm and
eccentric bottom (EBT) tapping. With comprehensive energy utilization technology,
furnaces of carbon steel lance and furnace door cluster oxygen lance are used for
two times burning of CO in molten pool, making full use of chemical energy in flue
gas to reduce electricity consumption and build foamed slag; and using high
impedance technology to raise two When the secondary voltage is increased, the
electric power is relatively stable, the impact on the power grid is reduced, the
short network system current is smaller, the energy consumption and electrode
consumption are reduced, and the effective input of electric power is improved.

Function

1. Used for scrap melting, decarbonization, dephosphorization, desulfuration,
deoxygenation and molten steel heating etc, for melting steel of different grades
and components.

2. Partial hot metal charging or charging pig iron, sponge iron (DRI) and hot
briquetted iron (HBI).

3. Additional charging during the melting process and primary alloying process.

EAF Capacity TON Transformer MVA Total Weight TON Graphite Electrode
Diameter MM
10 5.5~8 about 45 300~350
20 9~16 about 58 350~400
30 16~31.5 about 65 400~450
40 25·35 about 96 450~500
80 45~63 about 165 500
100 55~100 about 200 600
120 70~110 about 220 600

Characteristics

1. Refractory material saving due to the water cooled roof and water cooled panels.

2. Slagless tapping and tapping temperature reducing result from EBT.

3. Impendence of large current reducing due to the cooper and steel composited
conductive arm and large section water cooled cable.

4. Power consumption for per ton of steel and smelting period are reduced due to
adopting furnace door C-O lance and furnace wall coherent oxygen lance.

5. Fume collection rate is increased due to adopting furnace roof fourth hole and
other fume discharging methods.

6. Scrap steel continuous charging and preheating system could be applied thus save
energy, reduce consumption and improve smelting efficiency.

7. Raw material (DRI, HBI), lime and alloy automatic charging system could be
equipped.

8. Equipped with advanced PLC control system and smelting model.

Horizontal continuous feeding type EAF product

Click to Enlarge
