400KG 60 Watt Automatic Door Openers , DC 24V Electric Swing Gate Opener

Large Heavy DC Motor Swing Gate Opener Electric Gate Motor Operator
SW400dc is suitable for heavier single gate.



Product features:

* DC motor, compact structure, smooth operation and low noise.

* Stroke length 45 cm.

* External control box.

* Keypad/single button interface.

* Alarm lamp,Photo beam & safety beam interface.

* User can select auto-close function.

* Manual release design for emergency purposes.



Main technical parameters:

Unit Model SW400DC
Power Supply 220V,50Hz;110V,60Hz
Max. Gate Weight 400KG / Leaf
Max. Gate Length 3.0 m / Leaf
Motor Power DC24V,60W
Gate Moving Speed 20 second per 90 angle
Limit Switch Magnetic
Recording of up Remotes 25
Decoding / Frequency Rolling code / 433.92MHz
Work Duty S2 30min
Noise ≤60dB
Work Temperature -20°C~70°C

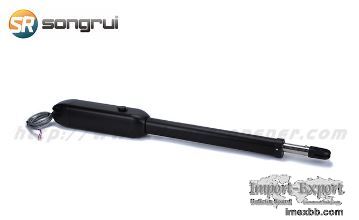

400KG 60 Watt Automatic Door Openers , DC 24V Electric Swing Gate Opener
